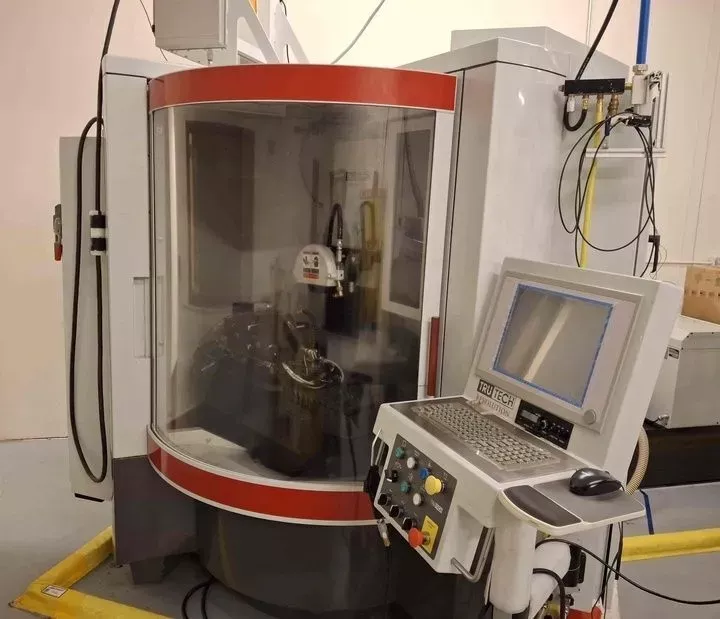

TRU TECH REVOLUTION AUTO T93X-A

X-Axis Travel 16″
Y-Axis Travel 9″
Z-Axis Travel 8.6″
3-Axis fully programmable
Intuitive programming
In-processing dressing
EBBCO Evolution 30/20 coolant filtration system
Magnetic separator
MistBuster 500 top mounted mist collector
Fire suppression system
Diameter acoustic sensing
Renishaw length probe balancing
Rotary dresser
EPSON robot loader
3-pallets
Optional dual grippers
3-Point Perimetric work-holding
Grind Length 6″
Grind Diameter 1″
Grind Diameter Minimum Tooling Dependent
Wheel Diameter 8″
Spindle RPM 5,000 RPM
Spindle Power 3 HP
Spindle Hours: 868
Y&X Axes Velocity 50 IPM
Input Increment +/-0.000010″
Accuracy +/-0.00005″
Repeatability +/-0.000025″
High-density granite base
Miscellaneous grind wheels & tooling
Dimensions 105″ x 73″ x 96″(H)
Weight 5,800 Lbs.
Electrics 208-240V
