Trumpf L4050

Ref : 32423
Condition : Used
Manufacturer : Trumpf
Model : L4050
Controller : -
Year(s) : -
Quantity : 1
Location : Seller or machines location:
United States (USA)

Reference #32423

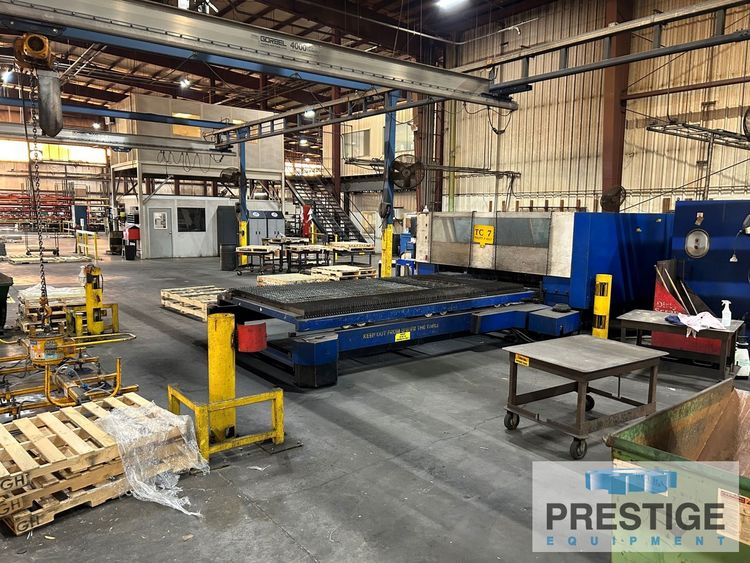

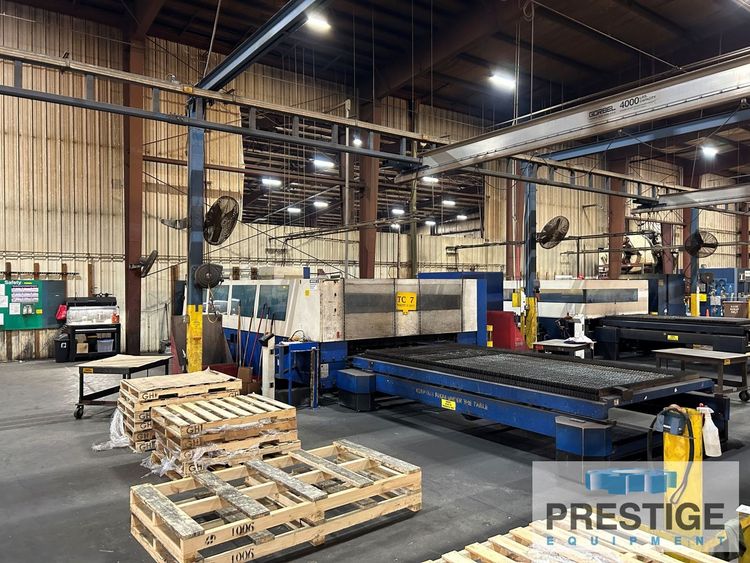

5000 Watt Trumpf L4050 CNC Flying Optic Laser

FEATURES:

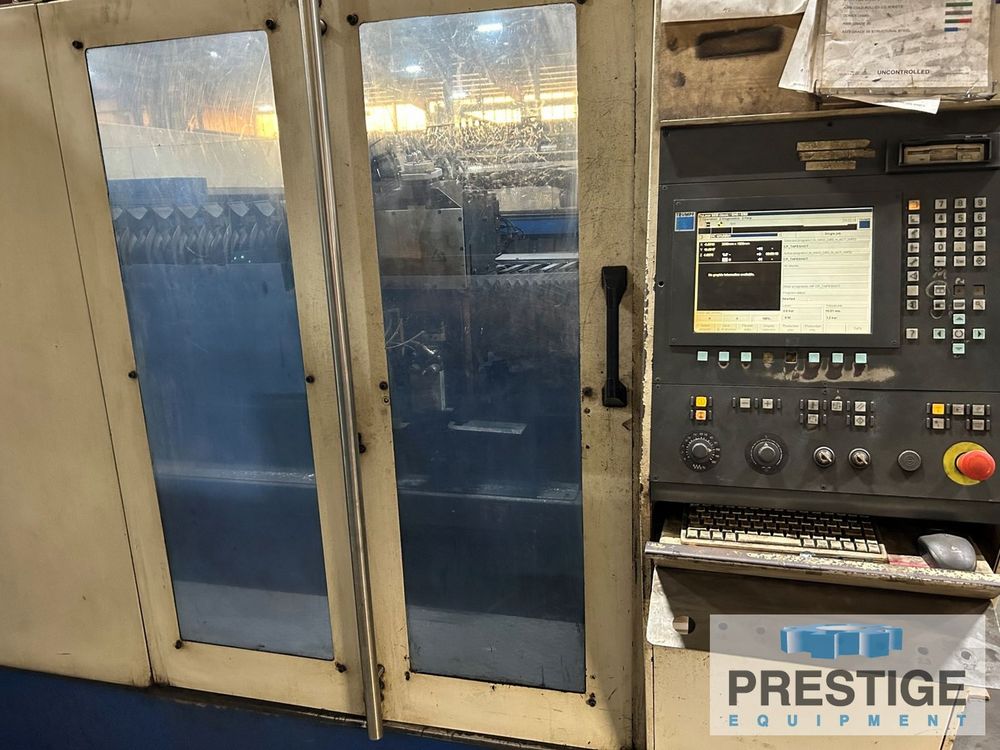

Siemens 840D CNC Control
TLF 5000 Watt Laser Resonator

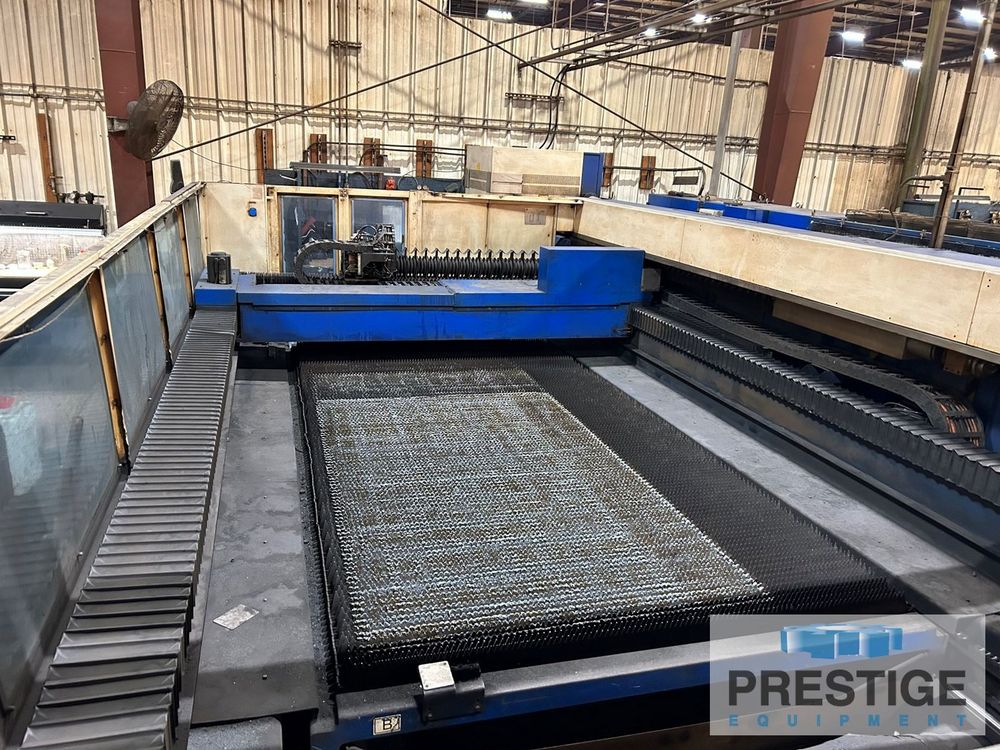

Automatic Pallet Shuttle System
Dust Collector

CAPACITY:
Laser Output .......................... 5000 Watts
X-Axis Travel ......................... 160"
Y-Axis Travel ......................... 80"
Z-Axis Travel ......................... 4.5"
Max. Workpiece Weight ................. 3,968 Lbs.
Max. Material Thickness (Mild Steel) .. 1"
Max. Material Thickness (Stainless) ... 1"
Max. Material Thickness (Aluminum) .... 0.63"
Positioning Speed (X-Axis) ............ 7,874 IPM
Positioning Speed (Y-Axis) ............ 11,811 IPM
Machine Weight ........................ 30,800 LBS

EQUIPPED WITH:
Siemens 840D CNC Control
TLF 5000 Watt Laser Resonator
Automatic Pallet Shuttle System

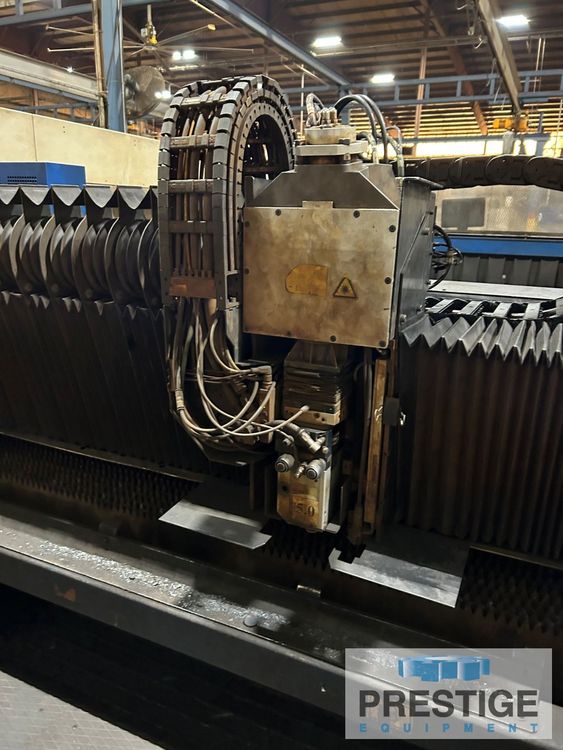

7.5" & 9" Cutting Heads
Chiller
Dust Collector

HOURS ON RESONATOR AS OF 1/19/2023 (NEW IN 2017):
29,840 On Time
15,909 Beam On Hours

NOTE:
Inspect In Plant Under Power
