Trumpf TC 500 R SM 1306 22 tons
EUROPE (Western and Northern)

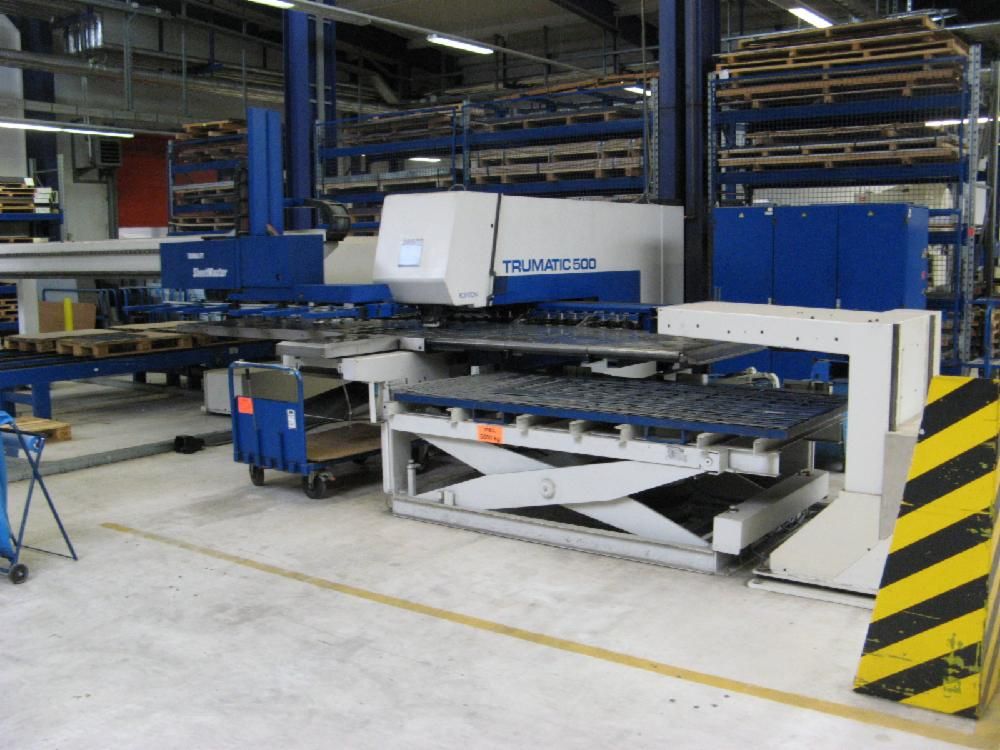

TRUMPF TC 500 R SM 1306
1996
Control system Sinumerik 840 D Trumagraph CC 220 S
Operating hours 81,000
Working area 2535 x 1280 mm
Punching force 22 tons
Sheet thickness up to 8 mm
Workpiece weight up to 150 kg
Max positioning speed (simultaneous X-Y axis) 108 m/min
C-axis rotation continuous 360 degrees
Max stroke rate 900 strokes/min
Max number of tools 18
Automation system CheetMaster 1306
Truma Grip
Truma Sort L
Chip conveyor with container
Multitool control
Thread forming function
Marking function
Slitting function
3 clamps
Scratch protection arms
Small part sensor with part chute
Part ejection unit
Pneumatic re-positioning cylinders
Softpunch
Memory expansion to 256 KB
Vibration-damped installation
Included tools: Multitool 6-station
Included tools: Multitool 12-station
