Trumpf TRUPUNCH 3000 20 tons
Ref :
2727359-3-MT
Condition :
Used
Manufacturer :
Trumpf
Model :
TRUPUNCH 3000
Pressure :
20 tons
Year(s) :
2012
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)

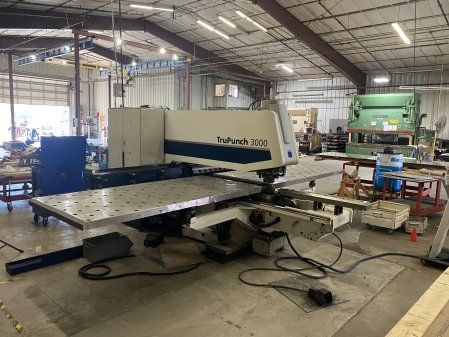

TRUMPF TRUPUNCH 3000
Year: 2012
Rated tonnage: 20 tons
Number of stations: 18
Number of stations with multitool: 180
Maximum hole diameter: 3"
Rotation speed: 330
Accuracy on 1-in centers: ±.004"
Strokes per minute nibbling: 1,000
Maximum material thickness: 0.250"
Maximum workpiece weight: 330 lbs
Throat depth: 50"
Table travel dimensions (X x Y): 50" x 100"
Table speed X-axis: 3,600 IPM
Table speed Y-axis: 2,400 IPM
Table speed diagonal: 4,250 IPM
