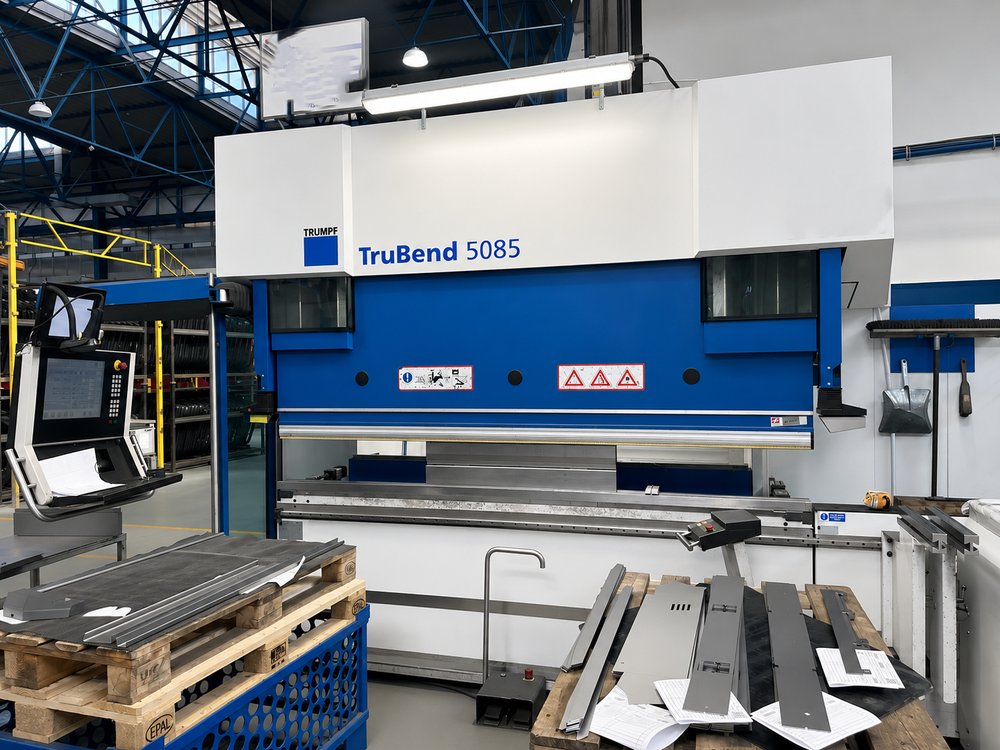

Trumpf TruBend 5085 SX (B03) 85 t

Press force: 85 t
Bending length: 2720 mm
Stroke: 445 mm
Beam entry: 615 mm
Distance between side frames: 2260 mm
Throat depth: 420 mm
Control: TASC 6000
15-inch touchscreen
Windows XPe operating system
2.8 GHz processor
Dual redundant hard drives
Network connection
Stable all-steel machine frame
Stress-relieved ram
Spherical ram suspension with ram tilt
Electro-hydraulic 4-cylinder drive
Block hydraulic system with control valves
Electronic pressure balance
Glass scale measuring system with temperature compensation
Control panel with LCD display
Foot switch
Hydraulic oil lifetime lubrication
Oil cooler
Electrical cabinet air-to-air heat exchanger
2-axis backgauge system
2 backgauge fingers
5-axis backgauge system
Electrical cabinet air conditioning
Manual upper tool clamping
Hydraulic upper tool clamping
Hydraulic lower tool clamping
Manual crowning
CNC crowning
Programmable CNC lower tool adjustment
Die space/stroke extension: 230 mm
Safety device: BendGuard
Emergency stop
Protective panels
CE marking
Front support bracket
ACB preparation
TruTops Bend control system
TruTops CAD
Long park position: 900 mm
