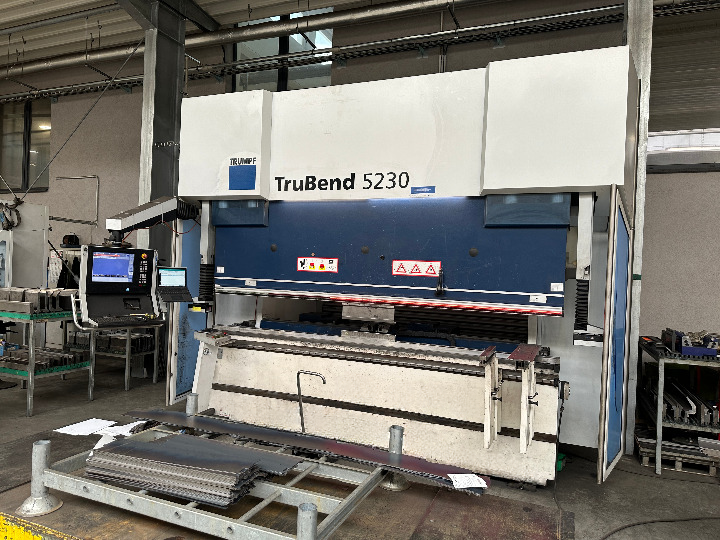

Trumpf TruBend 5230 (B03) TRUMPF TASC 6000

Press Force: 230 to
Bending Length: 3230 mm
Stroke: 445 mm
Throat: 2690 mm
Beam Entry: 615 mm
Distance Between Side Frames: 2690 mm

Control System: TRUMPF TASC 6000
Network Connection Control System
LCD Control Panel
Footswitch Emergency Up/Down/E-Stop

Electro-Hydraulic Downstroking Drive (4-cylinder system)
Modern Block Hydraulic System with Control Valves on Cylinder
Electronic Pressure Balance System
Temperature Compensated Measuring System with Glass Scales
Oil Cooler System
Air-Air Switch Cabinet Cooling System
Lifetime Hydraulic Oil Filling

Backgauge System: 2-axis
Backgauge Fingers: 2 pieces
5-axis Backgauge System

Upper Tool Clamping: Manual / Hydraulic (option)
Lower Tool Clamping: Hydraulic
Lower Tool Adjustment: Pneumatic

Manual Crowning System
CNC Crowning System (option)

Safety System: Emergency Stop
Safety Guards and Protective Panels
Rear Manual Roller Shutter
CE Certified Protection System

On-Demand Drive Energy Saving System
Smart Bending Package (TCB, BendGuard, Optical Positioning Assistant)
Working Area Lighting Front
Working Area Lighting Rear
Mobile Control Option
2 Front Support Brackets
ACB Tooling Preparation
