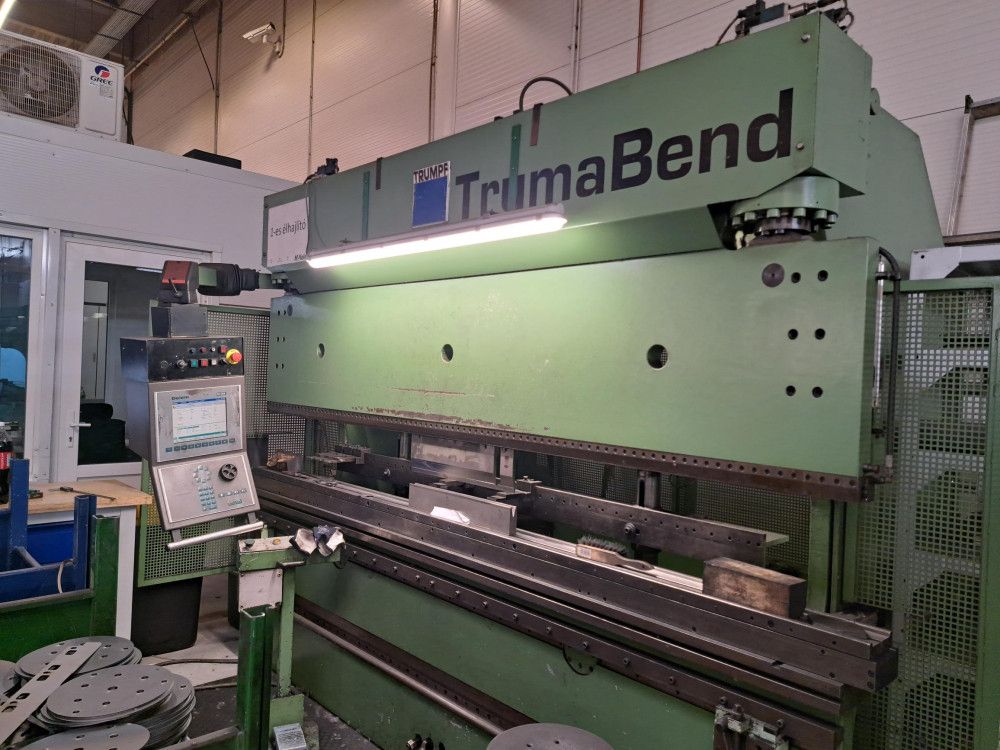

Trumpf TRUMABEND 125-3 1,250 kN

Ref : 2800894-3-GO

Condition : Used

Manufacturer : Trumpf

Model : TRUMABEND 125-3

Pressure : 1,250 kN

Year(s) : 1992

Quantity : 1

Location : Seller or machines location:
EUROPE (Central and Eastern)

- max. pressing force 1,250 kN
- maximum working length 3,050 mm
- stand height 2,550 mm
- maximum stroke 200 mm
- maximum distance between table and moving bridge (bear) 400 mm
- table width 180 mm
- max. operating pressure 280 bar
- motor power 15 kW
stroke speed
- rapid travel down 100 mm/s
- rapid travel up 92 mm/s
- bending down 1-10 mm/s
- oil charge (hydraulic oil) 200 l
- press weight 9,000 kg
- internal volume 26.5 m3
