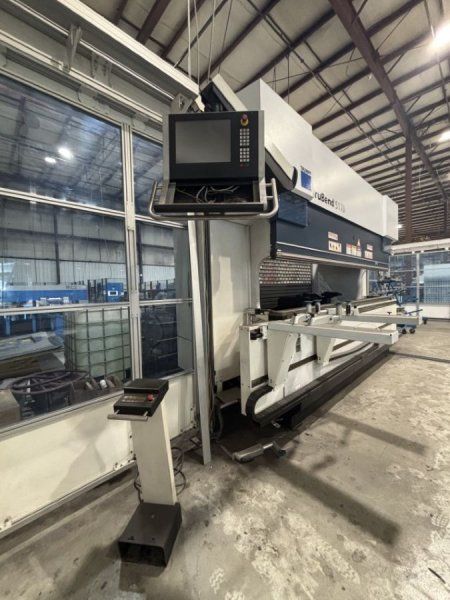

Trumpf TRUBEND CELL 5000 / TRUBEND 5170S / BENDMASTER 150 187 Ton

Press Force: 187 Ton
Bending Length: 167"
Width Between Columns: 145"
Usable Installation Height: 24"
Throat: 16.5"
Y Rapid: 520 IPM
Y Working: 24-36 IPM
Y Return Traverse: 520 IPM
X Axis: 2362 IPM
R Axis: 780 IPM
Z Axis: 2362 IPM
Y Axis Position Accuracy: 0.0002"
X Axis Position Accuracy: 0.002"
R Axis Position Accuracy: 0.003"
Stroke: 17.52"
Travel Path X Axis: 24"
Max. Gauge Area in X: 34"
Travel Path R Axis: 10"
Connected Load: 32 kVA
Oil Capacity: 58 gal
Maximum Part Size: 118" x 59"
Profiles: Up to 157"
Maximum Part Weight: 331 lbs
Maximum Carrying Capacity: 331 lbs
Minimum Sheet Thickness: 0.7 mm
Part Length: 26.24' - 52.49'
Maximum Sheet Stack: 27.56"
Maximum Stack Height for Finished Parts: 47.24"
Operating Height: 43.1" - 43.8"
Inclination of Beam: 0.39"
BendMaster Weight: 5,168 lbs
Machine Dimensions: 167" x 73" x 118"
Machine Weight: 35,280 lbs
