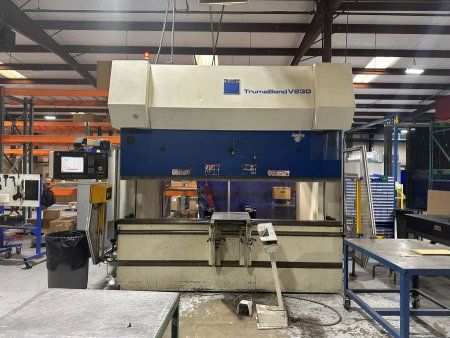

Trumpf TRUMABEND V230 257 ton

Press force: 257 ton
Bending length: 10'
Distance between housings: 8'10"
Throat depth: 16"
Stroke: 14.37"
Open height: 21"
Beam inclination: 0.4°
Bed width: 8"
Operating height: 41"
X-axis travel: 23.6"
Maximum X-axis position: 33.5"
X-axis rapid speed: 1200 IPM
Z-axis rapid speed: 1900 IPM
Y-axis rapid speed: 472 IPM
Y-axis return speed: 320 IPM
Maximum operating pressure: 4423 psi
Brake time: 59 ms
Safety distance: 3.7"
Control: Delem CNC 3D color control
CNC backgauge
Optional I-axis
CNC crowning
Hydraulic tool clamping
Electrical connection: 31.7 kVA
Voltage: 3 × 460 V
Full load current: 69 A
Frequency: 60 Hz
Weight: 39028 lb
