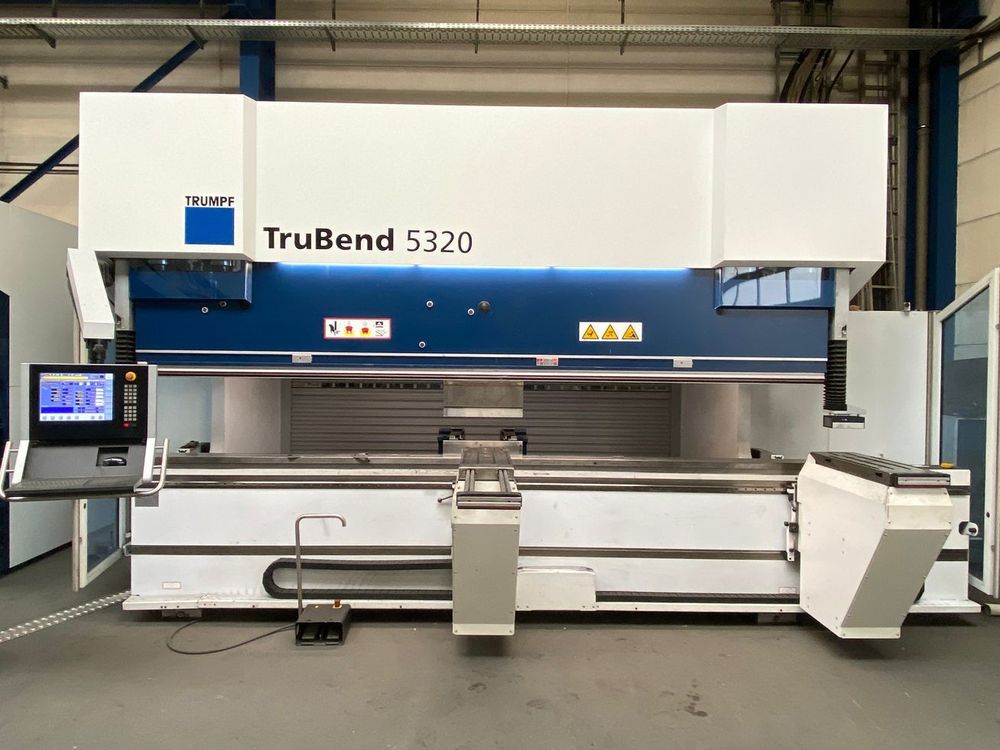

Trumpf TruBend 5320 (B03) 320 Ton

Press Force: 320 Ton
Bending Length: 4420 mm
Stroke: 445 mm
Beam Entry: 615 mm
Distance Between Side Frames: 3680 mm
Throat Depth: 420 mm
Control: TASC 6000

Stable All-Steel Machine Frame
Stress Relief Annealed Ram
Spherical Ram Suspension with Ram Tilt
Electro-Hydraulic Upper Drive with 4-Cylinder Technology
Optical Setup and Positioning Assistant
Generous Edge Clearance
Flat Front Covers
Block Hydraulics
Electronic Pressure Balance
Centered Glass Scale Measuring System with Deflection Compensation
Lifetime Lubrication Hydraulic Oil
Oil Cooler
Switch Cabinet Cooling with Air-Air Heat Exchanger
Modern Machine Design
TCB Thickness Controlled Bending

2-Axis Backgauge System
2 Backgauge Fingers

Hydraulic Upper Tool Clamping
Hydraulic Hardened Lower Tool Clamping
2-Position Pneumatic Lower Tool Shifting

CNC Crowning

TRUMPF TASC 6000 Control
Windows XPe Embedded
Pentium 4 Processor 2.8 GHz
2 GB RAM
15" Touchscreen
Network Connection Machine Control

LCD Control Panel
Foot Switch
Communication Track
Mobile Control

Standard Safety Equipment
BendGuard for Upper Tools up to 390 mm
CE Marking

6-Axis Backgauge System
Switch Cabinet Cooling with Air-Air Heat Exchanger

CNC Controlled Lower Tool Adjustment

Additional Foot Switch

1st Bending Aid Arm
2nd Bending Aid Arm
2 Table Length Extensions
Long Parking Position 900 mm

Rear Work Area Lighting
Front Work Area Lighting
