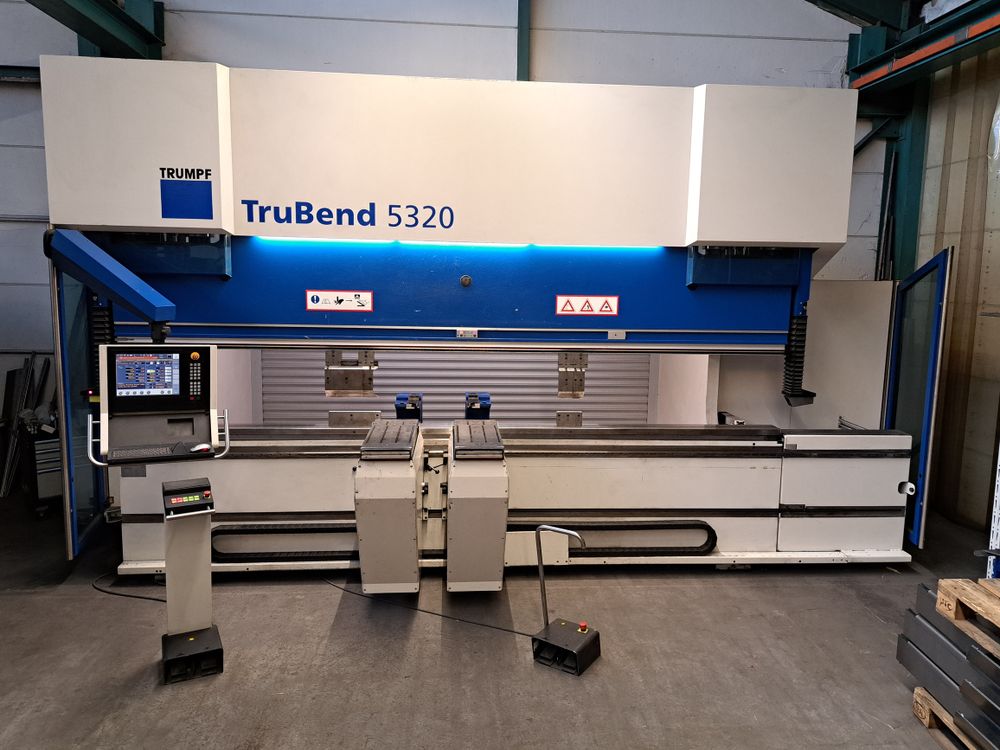

Trumpf TruBend 5320 320 T

Press force: 320 t
Bending length: 4420 mm
Stroke: 445 mm
Beam entry: 615 mm
Distance between side frames: 3680 mm
Throat: 420 mm
Control: TASC 6000

Stable machine frame as all-steel construction
Ram, stress relief annealed
Spherical ram suspension with ram tilt
Electro-hydraulic downstroking drive with 4-cylinder technology
Modern block hydraulics with control valves mounted on the cylinder
Electronic pressure balance
Measuring system with centered glass scales and temperature compensation
Control panel with LCD panel, footswitch for Emergency up, down and E-STOP
Oil cooler
Modern machine design
Backgauge system 2-axes
2 back gauge fingers
Manual upper tool clamping
Hydraulic lower tool clamping
Manual crowning
Pneumatic lower tool adjustment programmable
Emergency Stop button
Manual roller shutter rear
Protective panels
CE certificate
TRUMPF TASC 6000
Network connection machine control
6-axis backgauge system with switch cabinet cooling (air-air heat exchanger)
Hydraulic upper tool clamping
CNC crowning
Lower tool adjustment CNC controlled (I axis)
BendGuard for 220 mm/s
Additional foot switch
Bending aid first arm
Bending aid second arm
4× Table length extension
2× Table width extension
Optical setup and positioning aid
Work area lighting rear
Work area lighting front
Preparation ACB
MobileControl
