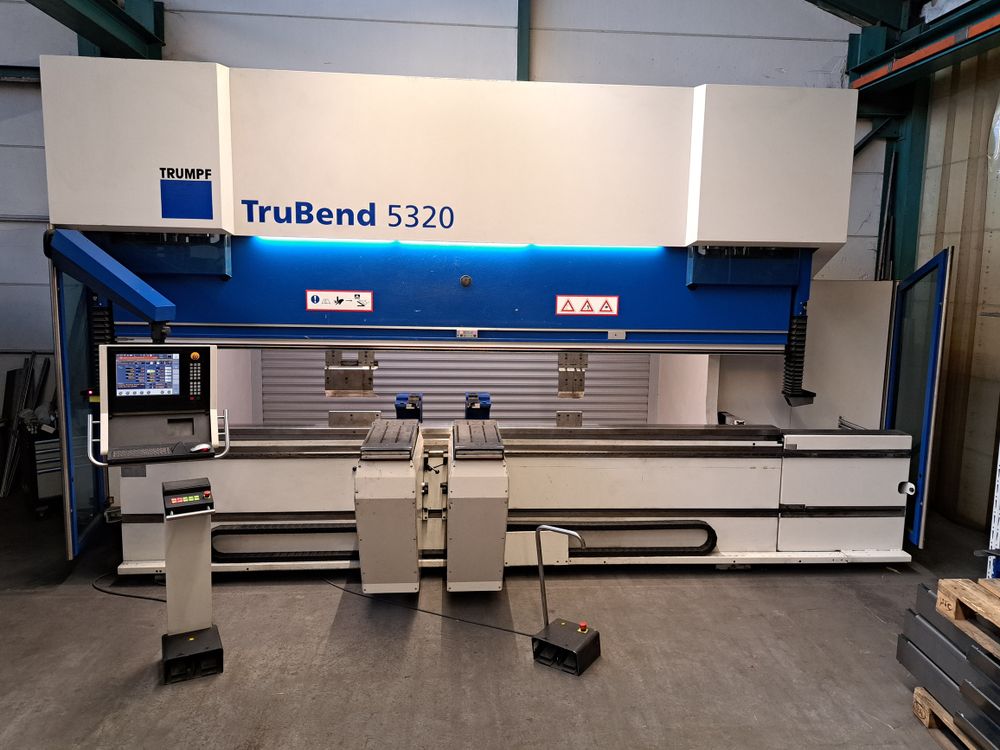

Trumpf TRUBEND 5320 320 t

Press force: 320 t
Bending length: 4420 mm
Stroke: 445 mm
Beam entry: 615 mm
Distance between side frames: 3680 mm
Throat depth: 420 mm
Control: TASC 6000

Features and Equipment
Stable all-steel frame construction
Stress-relieved ram
Spherical ram suspension with tilt
Electro-hydraulic downstroking drive with 4-cylinder system
Modern block hydraulics with control valves on cylinder
Electronic pressure balance
Measuring system with centered glass scales and temperature compensation
Control panel with LCD display
Footswitch with Emergency Up, Down, and E-Stop functions
Oil cooler
Modern machine design
2-axis backgauge system
2 backgauge fingers
Manual upper tool clamping
Hydraulic lower tool clamping
Manual crowning
Programmable pneumatic lower tool adjustment
Standard safety equipment with emergency stop button
Manual rear roller shutter
Protective panels
CE certificate
Network connection for control
6-axis backgauge system with air-air heat exchanger
Hydraulic upper tool clamping
CNC crowning
CNC-controlled lower tool adjustment (I axis)
BendGuard safety system for 220 mm/s
Additional foot switch
First bending aid arm
Second bending aid arm
4 table length extensions
2 table width extensions
Optical setup and positioning aid
Rear work area lighting
Front work area lighting
ACB preparation
MobileControl
