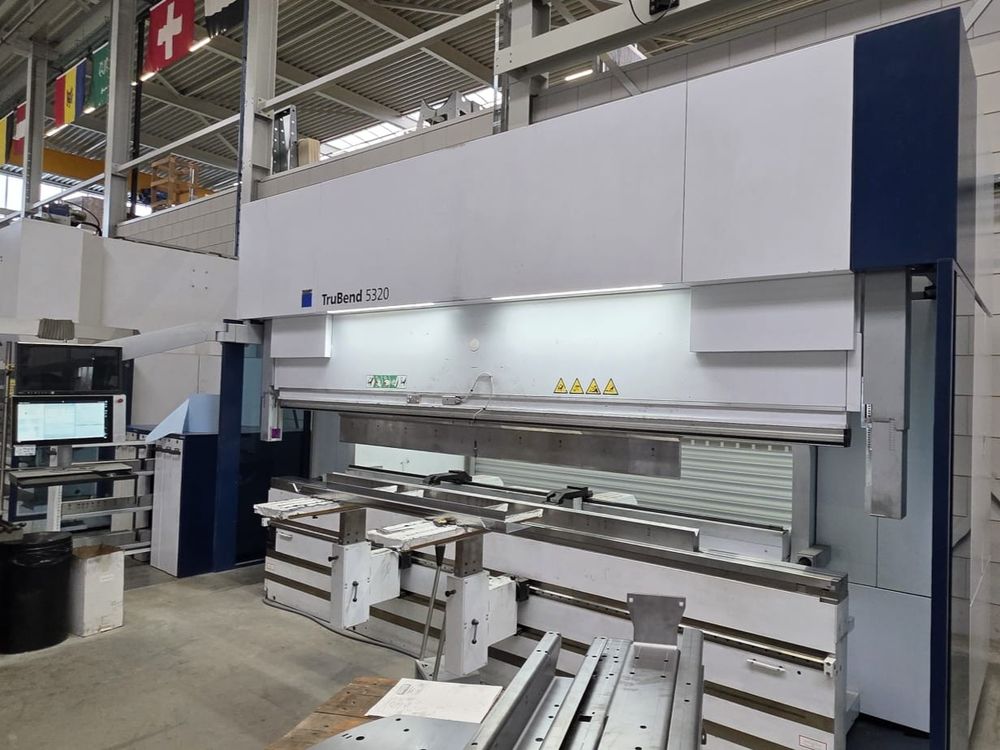

Trumpf TruBend 5320 (B23) 320 t

Press force: 320 t
Bending length: 4420 mm
Stroke: 445 mm
Beam entry: 615 mm
Distance between side frames: 3680 mm
Throat depth: 420 mm
Control system: Touchpoint TruBend
C-frame machine design
Press beam
Spherical bearing press beam with tilting
On-demand servo drive with 4-cylinder technology
Distance measurement system Y axis
Dynamic deflection compensation
Lifetime hydraulic oil filling
Extended open height/stroke
Electrical cabinet air conditioning up to 40 °C
Manual wedge crowning
CNC crowning
Backgauge X axis
Backgauge Delta X axis
Backgauge R axis
Backgauge Z1 axis
Backgauge Z2 axis
Backgauge fingers (2 pcs)
Manual upper tool clamping
Hydraulic upper tool clamping
Hydraulic lower tool clamping
Pneumatic lower tool displacement I axis
Integrated TRUMPF technology data
User management system
Data transmission
USB interface
RJ45 network interface
Network capability
Central Link
Remote support interface
Support arm with height adjustment
Operating unit with foot switches
Communications rail
MobileControl operation
Shop floor programming TecZone Bend
Front work area illumination LED
Rear work area illumination LED
Support brackets (2 pcs) with plastic supports
Table extensions for support brackets (2 pcs)
Standard safety device
Side sliding doors
Rear roller gate
CE marking
BendGuard safety system
