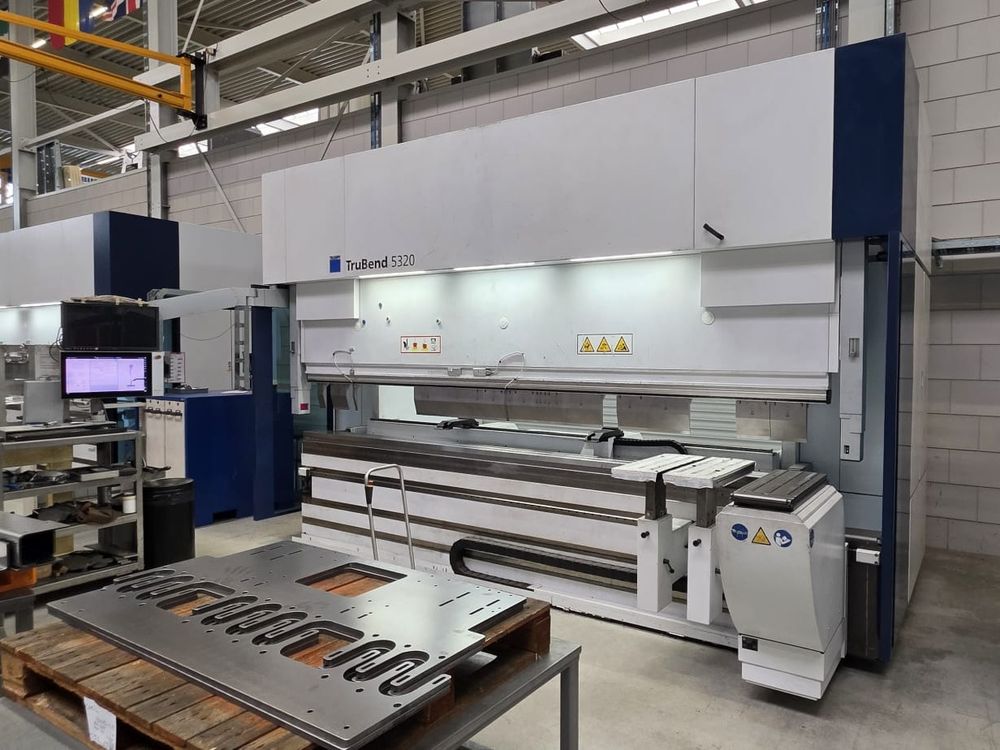

Trumpf TruBend 5320 (B23) 320 to
EUROPE (Western and Northern)
Press force: 320 t
Bending length: 4420 mm
Stroke: 445 mm
Beam entry: 615 mm
Distance between side frames: 3680 mm
Throat depth: 420 mm
Control system: Touchpoint TruBend
C-frame machine design
Press beam
Spherical bearing press beam with inclination
On-demand servo drive with 4-cylinder technology
Distance measurement system Y axis
Dynamic deflection compensation
Lifetime hydraulic oil filling
Electrical cabinet air conditioning up to 40 °C
Manual wedge crowning
CNC-controlled wedge crowning
Backgauge X axis
Backgauge ΔX axis
Backgauge R axis
Backgauge Z1 axis
Backgauge Z2 axis
Backgauge fingers (2 pcs)
Manual upper tool clamping
Hydraulic upper tool clamping
Hydraulic lower tool clamping
Pneumatic lower tool displacement I axis
Integrated TRUMPF technology data
Height-adjustable support arm
Network capability
Communications rail
MobileControl operation
Standard safety device
Side sliding doors
Rear roller gate
CE marking
BendGuard safety system
Bending aid first arm with plastic support
Table extension for bending aid
Support brackets (2 pcs) with plastic supports
Keyboard and mouse with holder
