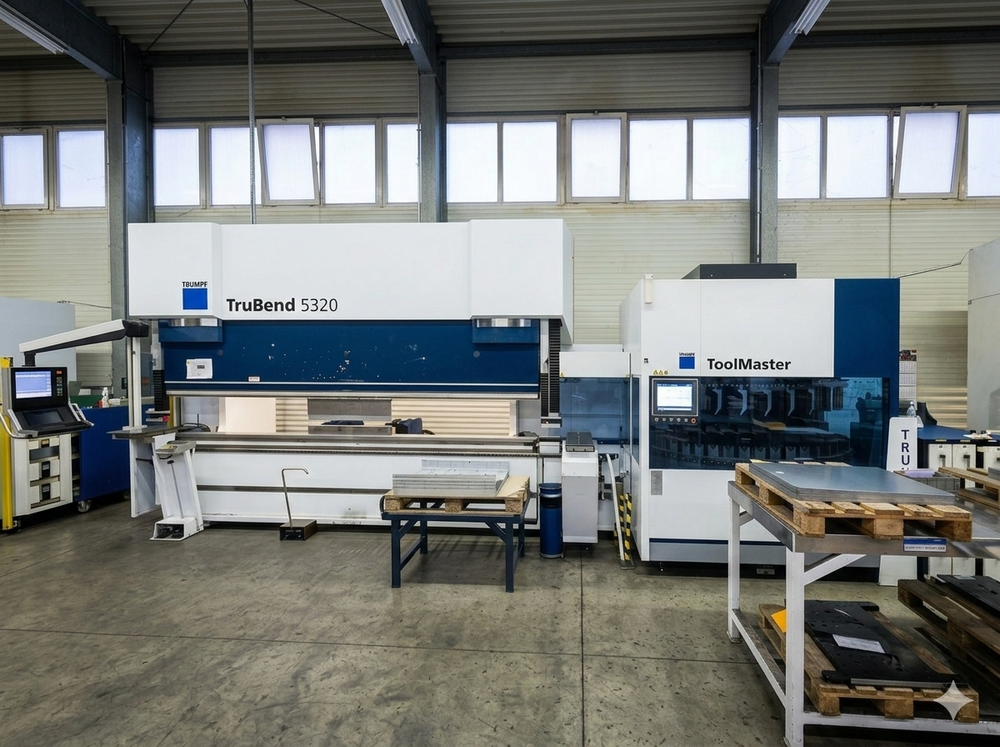

Trumpf TRUBEND 5320 (B03) 320 t

Press Force: 320 t
Bending Length: 4420 mm
Stroke: 445 mm
Beam Entry: 615 mm
Distance Between Side Frames: 3680 mm
Throat: 420 mm
Control: TRUMPF TASC 6000
Backgauge System 2 Axes
Backgauge System 6 Axes
Manual Upper Tool Clamping
Hydraulic Upper Tool Clamping
Programmable Tool Shifting
Manual Crowning
CNC Crowning
Lower Tool Adjustment CNC Programmable
Electronic Pressure Balance
Oil Cooler
Switch Cabinet Cooling
Communication Track
Control Panel With LCD Panel
Emergency Up Down Footswitch
Additional Foot Switch
BendGuard With Block Laser
Front Support Brackets
Bending Aid First Arm
Table Length Extension
Table Width Extension
Parking Position 900 mm
Work Area Lighting Rear
Work Area Lighting Front
Mobile Control
ToolMaster KB29
Upper Tool Magazine With CNC Rotary Axis
Lower Tool Magazine With CNC Rotary Axis
Push Chain Manipulators For Upper And Lower Tools
Magnet Gripper System
Position Monitoring
CNC Turning And Transfer Unit For Upper Tools
Transfer Unit For Lower Tools
Electrical Cabinet Air Conditioning
Light Curtain Vertical And Horizontal
