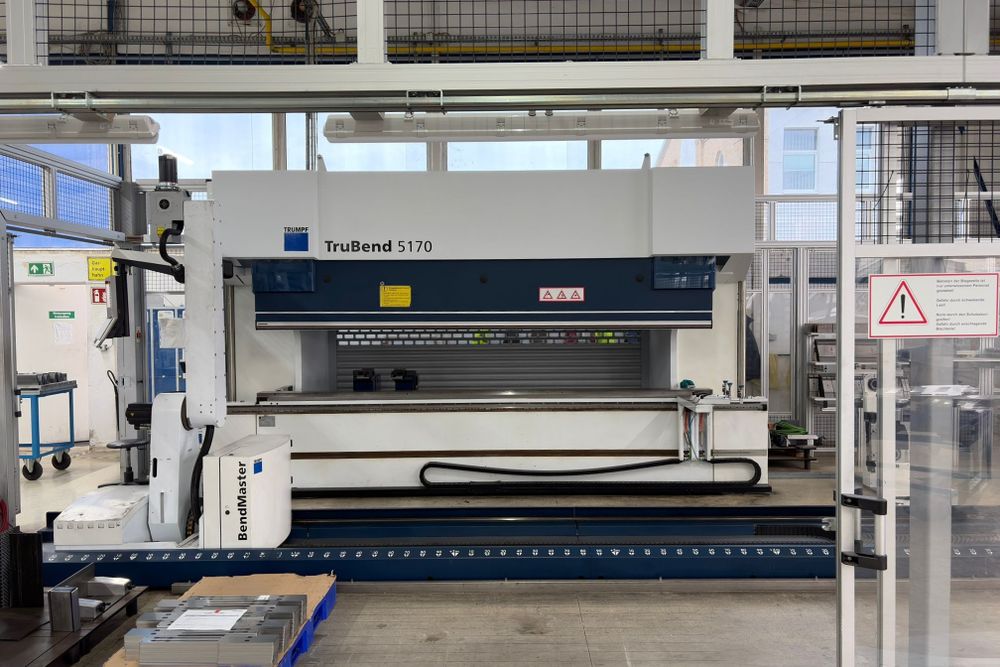

Trumpf TruBend Cell 5170 S (B03) 170 t

Bending Length: 4250 mm
Press Force: 170 t
Stroke: 445 mm
Beam Entry: 615 mm
Distance Between Side Frames: 3680 mm
Throat: 420 mm

TRUMPF TASC 6000 Control
Backgauge System: 2-Axis
Backgauge Fingers: 2 pcs

Hydraulic Upper Tool Clamping
Manual Upper Tool Clamping
Hydraulic Lower Tool Clamping

Manual Crowning System
CNC Crowning System
Lower Tool Adjustment: CNC Programmable
Lower Tool Shifting: CNC

Electro-Hydraulic Downstroking Drive (4-cylinder)
Spherical Ram Suspension
Electronic Pressure Balance
Measuring System
Hydraulic Oil Filled (Lifetime Lubrication)
Oil Cooler
Switch Cabinet Cooling (Air-Air Heat Exchanger)

Optical Setup and Positioning Aid
Work Area Lighting (Front & Rear)
MobileControl

BendMaster Automation System
Max Payload: 60 kg
Floor Tracks Length: 6000 mm
Floor Track Travel: 4550 mm
Electrical Drives
Sheet Sensor
Vacuum Gripper System
Gripper Coupling
Safety Fence with Access Door
NC Gripper Station
Double Sheet Detection
Automatic Gripper Change Module
NC Repositioning Station
Sheet Loader with Linear Axis
