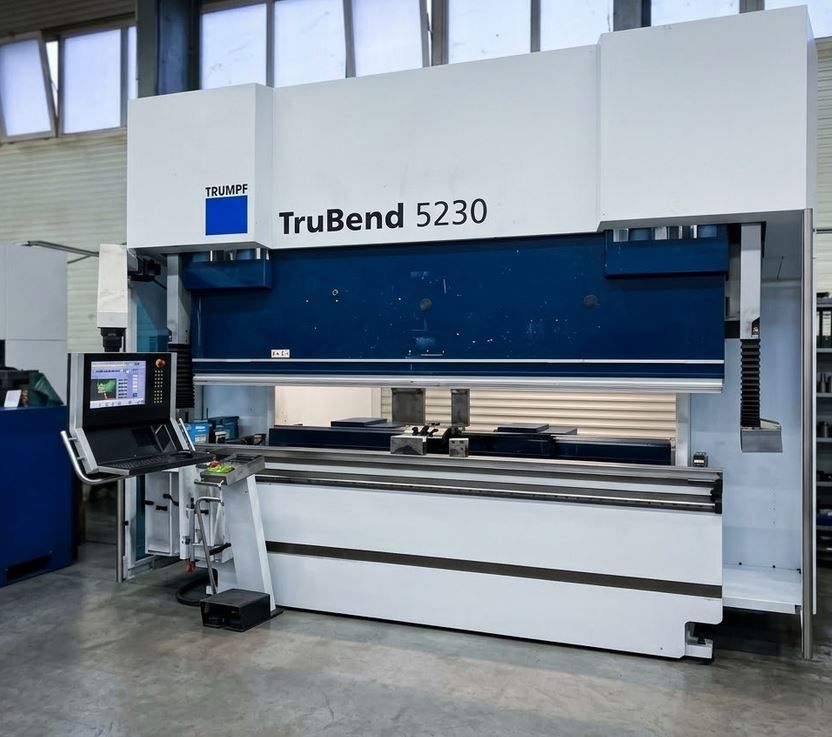

Trumpf TruBend 5230 230 to

Press force 230 to
Bending length 3230 mm
Stroke 445 mm
Beam entry 615 mm
Distance between side frames 3680 mm
Throat 420 mm
Stable all-steel machine frame
Ram stress relief annealed
Spherical ram suspension with ram tilt
Electro-hydraulic downstroking drive with 4-cylinder technology
Modern block hydraulics with control valves on cylinder
Electronic pressure balance
Measuring system with centered glass scales and temperature compensation
Oil cooler
Switch cabinet cooling with air-air heat exchanger
Modern machine design
Backgauge system 2-axes with rack-and-pinion drive
2 stop fingers
Manual upper tool clamping, hardened, self-centering
Hydraulic lower tool clamping, programmable
Manual crowning
Lower tool adjustment CNC, programmable
Emergency stop button
Manual roller shutter rear
Protective panels
CE marking
TRUMPF TASC 6000 control
Network connection machine control
Communication track
Control panel
5-axis backgauge system
Hydraulic upper tool clamping
CNC crowning
Safety device BendGuard
Additional footswitch
2 front support brackets
DELEM converter (CD-ROM)
Work area lighting rear
Work area lighting front
