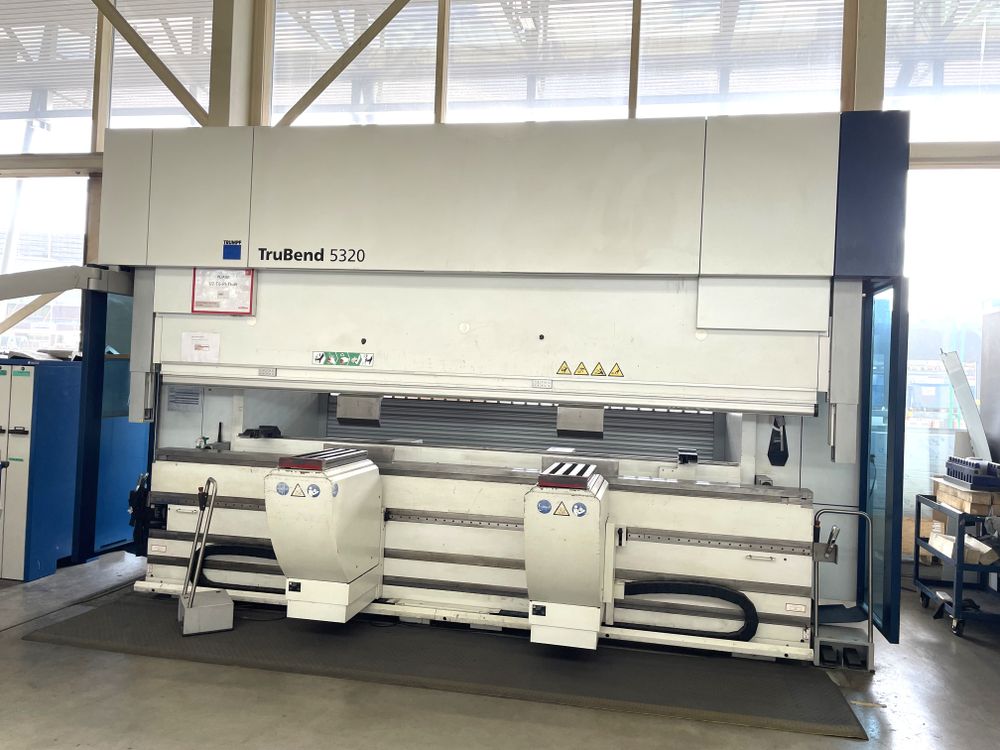

Trumpf TRUBEND 5320 (B23) 320 TON

Press force 320 t
Bending length 4420 mm
Stroke 445 mm
Beam entry 615 mm
Distance between side frames 3680 mm
Throat 420 mm

C frame
Press beam
Spherical bearing of the press beam with tilting
On-Demand Servo Drive with 4-cylinder technology
Distance measurement system Y-axis with dynamic deflection compensation
Hydraulic oil filling (life-long)
Extension of open height/stroke
Gauge fingers 2 pieces
TRUMPF hydraulic lower tool clamp
Touchpoint TruBend control
Integrated TRUMPF technology data
User management system
Data transmission
USB interface
RJ45 network interface
Network capability
Central Link
Remote support interface
Operating unit with foot switches
Communications rail
MobileControl
CE marking
Standard safety device
Lateral sliding doors
Rear roller gate
Electrical cabinet air conditioning up to 40°C
Manual wedge crowning
2-axis backgauge X and R
Manual TRUMPF upper tool clamp
Pneumatic lower tool displacement I axis
Operating panel with height-adjustable support arm
Shop floor programming TecZone Bend trial
ACB Wireless Automatically Controlled Bending
Thickness Controlled Bending TCB
5-axis backgauge X Delta X R Z1 Z2
TRUMPF hydraulic upper tool clamp
Preparation for wireless operating options
Wireless operating unit with foot switch and charging station
Additional cable-based operating unit with foot switch
Additional MobileControl
Tool Indicator
Front LED work area illumination
Rear LED work area illumination
Bending aid 1st arm with plastic support
Bending aid 2nd arm
Brush support 2 pieces
BendGuard Automatic
Robot interface without sensor system for backgauge
