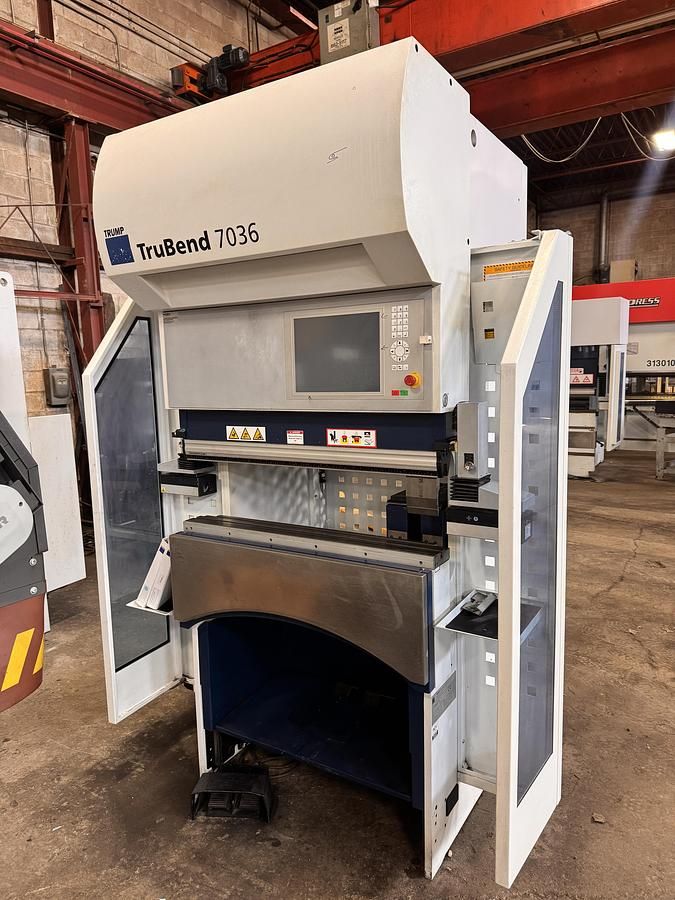

Trumpf TRUBEND 7036 TONNAGE 40 TON U.S. / 36 METRIC TONS

OVERALL BENDING LENGTH 40"
STROKE 4.72"
WIDTH BETWEEN COLUMNS 37"
MAX TABLE/BEAM DISTANCE 16.5"
USABLE INSTALLATION HEIGHT 12"
THROAT DEPTH 6"
OPERATING HEIGHT 45"

Y-AXIS RAPID SPEED 520 IPM
Y-WORKING SPEED 59 IPM
Y RETURN SPEED 520 IPM
X-AXIS SPEED 2362 IPM
R-AXIS SPEED 780 IPM
Z-AXIS SPEED 2362 IPM
X-AXIS TRAVEL 9"
R-AXIS TRAVEL 3"
MAX GAUGE AREA IN X 20"

CNC TASC 6000 TOUCH SCREEN CONTROL
6-AXIS BACKGAUGE (X1, X2, R1, R2, Z1, Z2)
WILA NEW STANDARD TOP AND BOTTOM HYDRAULIC CLAMPING SYSTEM
15" TOUCH SCREEN
NETWORK READY
LAZERSAFE SAFETY SYSTEM
APPROX MACHINE WEIGHT 5,800 LBS
