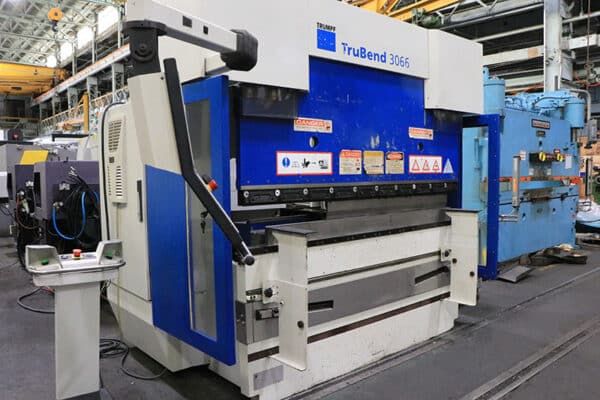

Trumpf TRUBEND 3066 73 Ton x 80" Hydraulic Press Brake Tonnage: 73

Bed Length: 80"
Distance Between Housings: 69"
Length Between Housings: 93"
Stroke: 7.87"
Open Height: 14"
Closed Height: 5.9"
Y-Axis Rapid Downward Movement: 200 mm/sec
Y-Axis Operational Speed Max: 15 mm/sec
Press Speeds Rapid Advance: 472 IPM
Press Speeds Bending: 35 IPM
Press Speeds Return: 472 IPM
Main Motor: 10 HP
Max Operating Pressure: 4,466 PSI
Motor Specs: 3 Ph / 460 V
Approx. Weight: 12,500 lbs
Approx. Dimensions: 102" x 69" x 92" H
Palm Buttons Mounted on Pedestal Station with Foot Pedal
DELEM DA-65TW Graphic Control
TRUMPF CNC Multi-Axis Back Gauge (X, Y, R, Z1, Z2)
Misc. Tooling
