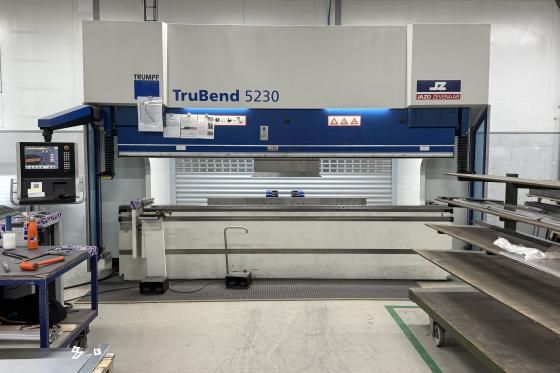

Trumpf TrueBend 5230 230t
Ref :
2747014-3-GO
Condition :
Used
Manufacturer :
Trumpf
Model :
TrueBend 5230
Pressure :
230t
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Pressing force 230t
Max. bending length 3230mm
Distance between columns 2690mm
Beam stroke 615mm
Dis. beam - table 735mm
Troth beam 220mm
Approach speed 25mm/min
Working speed 220mm/min
Adjustment X-axis back gauge 0–1000mm
Control TASC 6000
6 axis back gauge X1/X2/R1/R2/Z1/Z2
Wila crowning
Wila New Standard II tool clamping
4 cylinder construction 2 left / 2 right
Lazer safe protection
Closed door backside machine
First owner machine fully Trumpf serviced
Length 4150mm
Width 2055mm
Height 3000mm
Weight 19200kg
