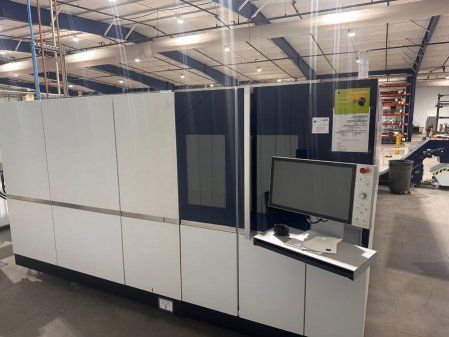

Trumpf TRULASER 3060 FIBER LASER CNC CONTROL

Working range: 6000 mm x 2500 mm (~20' x 8')
Maximum simultaneous axis speed: 170 m/min
Machine weight: 18050 kg (39793 lb)
Machine dimensions: 15450 mm x 6878 mm x 2200 mm
Main supply: 460 V / 60 Hz
Connected load: 74.0 kVA
Control voltage: 24 VDC
Full load current: 103 A
Amp rating of largest motor: 10.6 A
Maximum laser power: 12000 W
Maximum material thickness mild steel: 30 mm
Maximum material thickness stainless steel: 40 mm
Maximum material thickness aluminum: 30 mm
Maximum material thickness copper: 12.7 mm
Maximum material thickness brass: 12.7 mm

Equipment
Dust collector
Chiller
