Trumpf TruLaser 5030 Fiber - 5 kW Siemens 840D

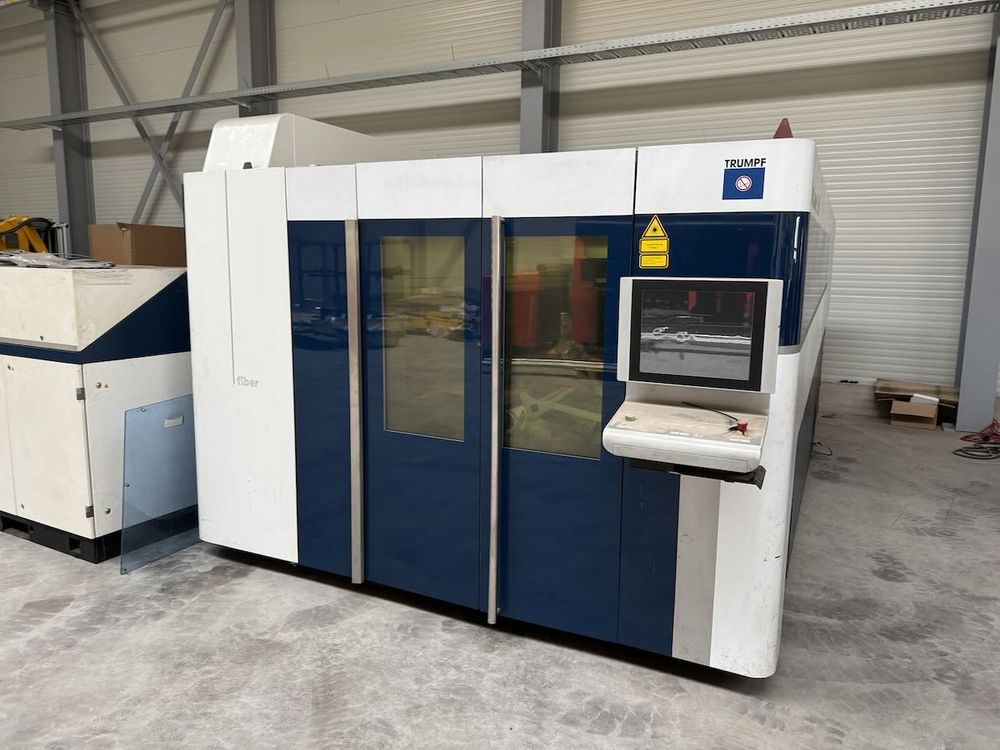

TRUMPF TruLaser 5030 Fiber - 5 kW
Year: 2012

Laser on hours: 51,942 h
Beam on hours: 29,734 h
Laser power: 5,000 W
Control: Siemens 840D
Working range: 3000 x 1500 x 115 mm
Max steel thickness: 25 mm
Max stainless steel thickness: 25 mm
Max aluminum thickness: 25 mm
Max copper thickness: 10 mm
Max brass thickness: 10 mm
Machine length: 9950 mm
Machine width: 4600 mm
Machine height: 2400 mm
Machine weight: 12,000 kg

Closed machine frame with integrated laser unit
Torque drive with direct linear drives
Closed beam guidance via fiber-optic cable
Machine chiller
Integrated electrical cabinets with lighting
Automatic longitudinal pallet changer
Small parts/slugs conveyor belt
Work area lighting
Positioning laser diode
Spray device
PierceLine
FocusLine
NitroLine
PlasmaLine
Automatic nozzle cleaning

TruDisk 3001 solid-state laser
Light conducting cable
Laser chiller
Excitation by pumping diodes
Laser power control
Laser logbook function

Universal cutting head with adaptive lens system
Safety glass to prevent lens contamination
ControlLine: automatic height control and edge detection

Shop floor programming
Siemens Sinumerik 840D SL control
17" touchscreen
Integrated technology tables
Automatic shutdown
FastLine
Quick reproduction
Teleservice
Data transmission
USB interface
RJ45 network connection

CE label
Light barriers
Multi-chamber exhaust system
Integrated compact dust extractor
Machine enclosure with certified window (right door)
Electrically operated retractable roof

Automation package included
