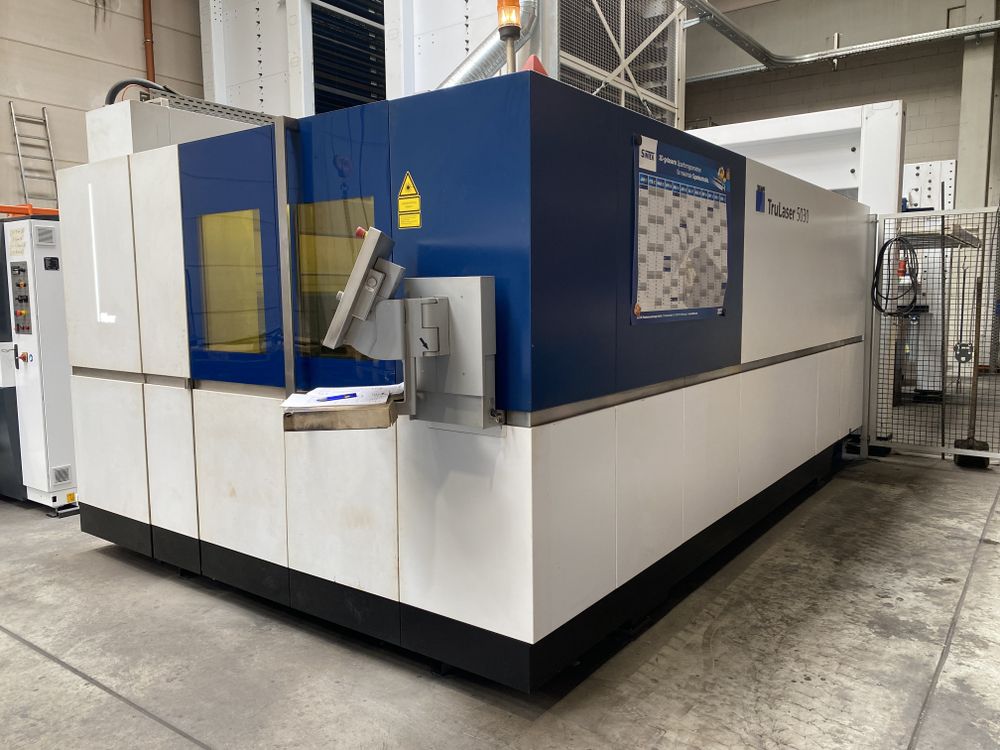

Trumpf TruLaser 5030 fiber (L68) Siemens Sinumerik 840 D SL

Working area 3000 x 1500 x 115 mm
Laser rated output 5000 Watt
Control Siemens Sinumerik 840 D SL
Max sheet thickness steel 25 mm
Max speed 265 m/min
Closed machine frame
Integrated cabinet
Motion unit for high precision processing
Automatic pallet changer lengthwise installation
Torque drive in combination with direct linear drives
Enclosed beam delivery via laser light cable
Chiller for machine cooling
Integrated electrical cabinets with inside light
Power supply for TruDisk by the machine
Longitudinal conveyor
Ergonomic control panel with touchscreen
Work area lighting
Positioning laser diode
Spray device
FocusLine
NitroLine
PlasmaLine
Automatic nozzle cleaning
Integrated solid-state laser TruDisk 3001 with 1 laser output
Laser chiller unit water-air
Stimulation via pump diodes
Laser power control
Universal cutting head
Single cutting head strategy
Safety glass to avoid lens contamination
Safety glass monitoring
ControlLine automatic height control and sheet edge detection
Easy shop floor programming
Fast reproduction
19” touchscreen
Technology data integrated
Automatic shutdown
Programmable cutting gas pressure
Multi sheet processing
ContourLine
Microweld
FastLine
FlyLine
AdjustLine
Condition Guide
USB interface
RJ45 network connection
Wireless operation point basic for visual online support
CE label
Light barriers
Multi chamber exhaust system
Compact dust extractor
Machine enclosure with certificated window right door
Solid-state laser TruDisk 5001 with 1 laser output includes BrightLine fiber
Smart nozzle automation with nozzle changer
Nozzle inspection
Smart skip
CoolLine
Wide transverse conveyor with tilt container right hand installation
Cleaning brush
Machine status lamp with MDA-interface
Door window on left side
Integrated video camera 1 for process monitoring and single picture transmission to network
Drop&Cut
Mezzanine installation without steel structure
Further elongation of 10 m of fiber cable optic between laser and machine
Connector exhaust line for compact dust extractor
Preparation LiftMaster Compact
