Trumpf TRULASER 5030 FIBER LASER Trumpf CNC control: Siemens Sinumerik 840D

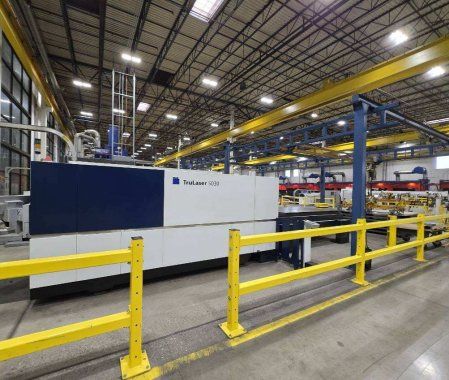

8000 WATT TRUMPF TRULASER 5030 FIBER LASER
MFG:2017

Working range:
X axis: 120"
Y axis: 60"
Z axis: 4.5"

Maximum work-piece weight: 1,980 lbs.
Maximum axial speeds
Simultaneous, approximate: 10,443 IPM
Accuracy
Smallest programmable increment: .0004"
Positioning accuracy: .004"
Repeatability: .001"

Control
Trumpf CNC control: Siemens Sinumerik 840D
TruDisk 8001 resonator:
Maximum material thickness
Mild steel: 25 mm (~ 1")
Stainless steel: 40 mm (~1.5")
Aluminum: 25 mm (~1")
Brass: 10 mm (~0.39")
Copper: 10 mm (~.39")

Equipped with:
Chiller
Dust Collector
