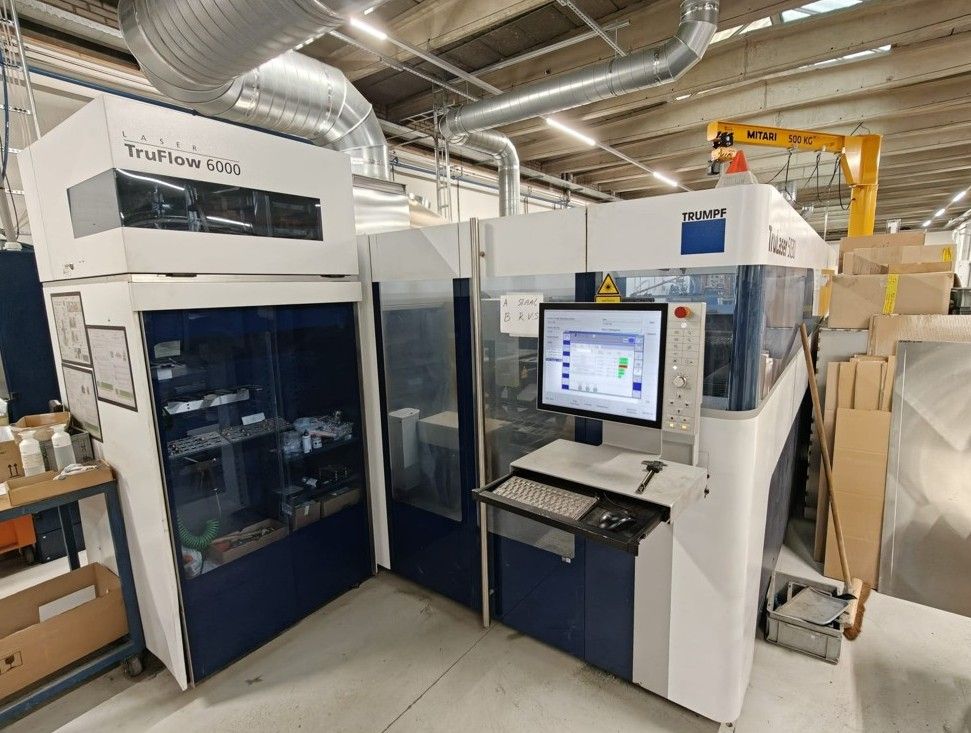

Trumpf TruLaser 5030 (L52) Siemens Sinumerik 840D

Working area X 3000 mm
Working area Y 1500 mm
Working area Z 115 mm
Laser power 6000 W
Control Siemens Sinumerik 840D
Max sheet thickness steel 25 mm
Max sheet thickness stainless steel 25 mm
Max sheet thickness aluminum 15 mm
Max speed 300 m/min

Closed machine frame with integrated laser unit
Motion unit for high precision processing
Enclosed beam delivery system
Chiller
Automatic pallet changer
One cutting head strategy
Longitudinal conveyor for small parts / slag
Ergonomic control panel with touchscreen
Positioning laser diode
Working area lighting
Spray device
PierceLine
FocusLine
NitroLine
PlasmaLine
Automatic nozzle cleaning

TRUMPF TruFlow 6000 CO2 laser energy-efficient
Maintenance-free radial turbine blowers
Radio-frequency excitation
Laser control TASC
Laser power control
Logbook function laser

Lens with RFID chip
Laser cutting head with 250 mm lens
Universal quick-change device UTI
ControlLine height regulation and sheet edge sensing

Easy shopfloor programming
Siemens Sinumerik 840D SL
19 inch touch panel
Technology data integrated
Automatic shutdown
Programmable cutting gas pressure
Multi-sheet processing
Microweld
FastLine
AdjustLine
FlyLine
Interface remote support
Condition Guide

USB interface
RJ-45 network connection
Central Link
Online Update Manager

CE marking
Light barriers
Multi-chamber extraction system
Compact dust extractor
Machine enclosure Macrolon panels

Smart Nozzle Automation
Nozzle changer
Beam centering
LensLine automatic status check
Nozzle inspection
Smart skip
BrightLine
Wide transverse conveyor tilt container right hand installation
Integrated video camera 1 process monitoring
Drop&Cut (with video camera)
Wireless Operation Point
