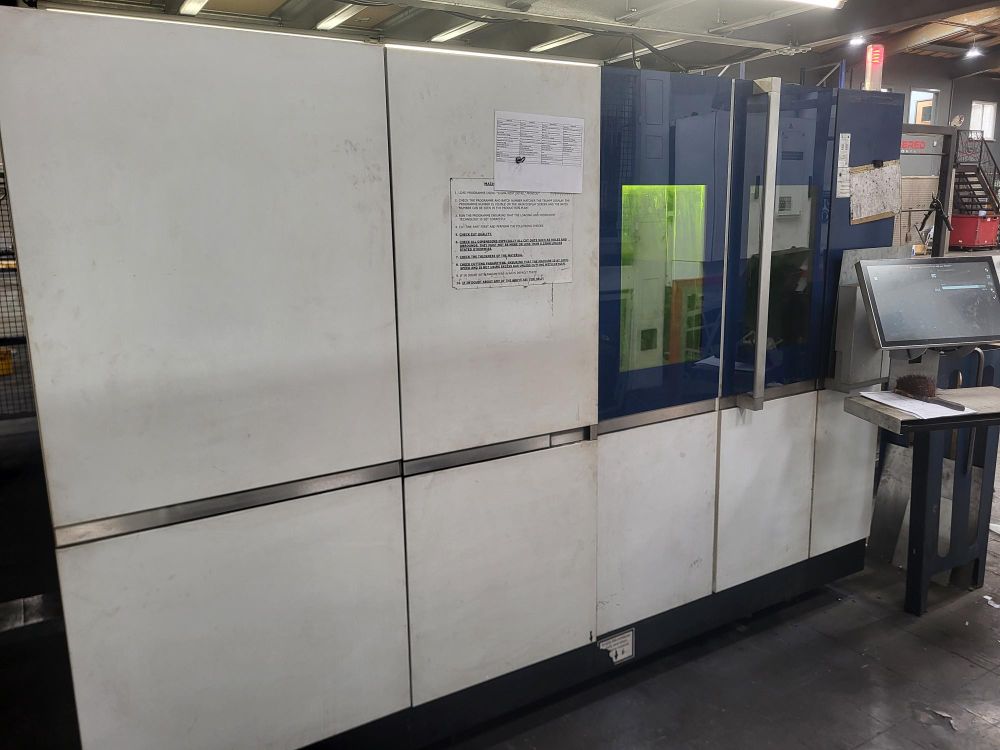

Trumpf TruLaser 5030 L76 Control Sinumerik 840D SL

TRUMPF TruLaser 5030 L76
2022

Working area 3000 x 1500 mm
Laser rated output 12000 Watt
Control Sinumerik 840D SL
Max. sheet thickness steel 50 mm
Max. sheet thickness stainless steel 50 mm
Max. sheet thickness aluminum 40 mm
Max. speed 140 m/min
Box frame
Longitudinal conveyor belt
Gantry drive with linear direct drives
Process cooler for machine and laser (water/air)
Work area illumination
Pilot laser
Spraying equipment
Automatic nozzle cleaning
Integrated electrical cabinets
Closed beam guidance via laser light cable (LLK)
Machine status light
Excitation using pump diodes
Laser power control
Single cutting head strategy
Protective glass
Online condition checking of protective glass
Dynamic Focus Control
Automatic nozzle centering
Universal cutting unit with fully adaptive lens system
AdjustLine function
BrightLine Fiber function
ControlLine function
FastLine function
FlyLine function
FocusLine function
NitroLine function
PierceLine function
Fusion cut performance package
Highspeed cutting package
Copper cutting package
Brass cutting package
Quick post-production
Ergonomic control panel with 21.5" wide-screen multi-touch color display
Integrated technology data
Auto-shutdown
Programmable cutting gas/pressure selection
Microweld
Remote support interface
Production plan
Multi-sheet processing
Condition Guide
Cutting Guide
CE marking
Light barriers
Multi-chamber compact dust extractor
Electrical rolling roof
Enclosed protective housing with certified door viewing panel right and left
USB interface
RJ45 network interface
Central Link
Online Update Manager
Compact dust extractor
Slats made of mild steel (67 mm)
Automatic pallet changer in longitudinal direction
Machine environment temperature +5°C to 35/45°C
External solid-state laser TruDisk 12001 with Smart Beam Control
Prefilter for filtering particles in nitrogen and oxygen gas lines
Smart Nozzle Automation including nozzle changer and automatic nozzle inspection
Cutting package Highspeed Eco for high-speed cutting at low gas consumption
Cutting package for thick sheets
Wide transverse conveyor belt with tipping container (right side)
Cleaning brush
Slag cart under pallet changer
2 x 30 l disposal unit for compact dust extractor (optional)
Mezzanine version of machine (steel structure not included)
Preparation LiftMaster Compact available at additional cost
