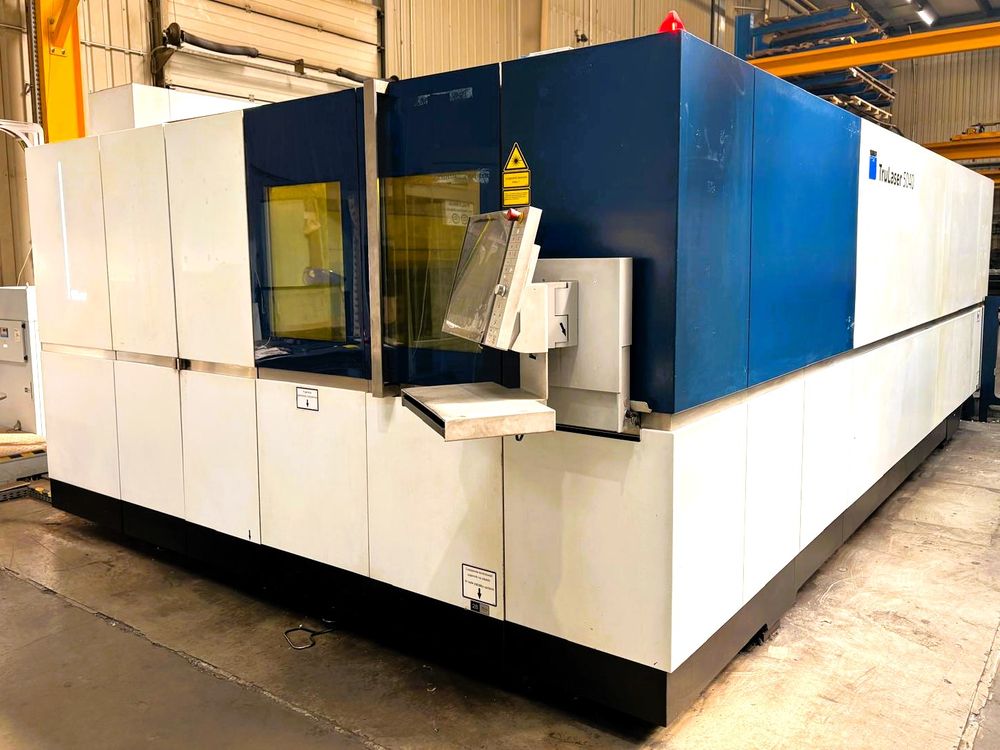

Trumpf TRULASER 5040 FIBER (L69) Siemens Sinumerik 840 D SL

TRUMPF TRULASER 5040 FIBER (L69)
2018

Working area 4000 x 2000 x 115 mm
Laser rated output 8000 Watt
Control Siemens Sinumerik 840 D SL
Maximum sheet thickness (steel) 30 mm
Maximum sheet thickness (stainless steel) 40 mm
Maximum sheet thickness (aluminum) 25 mm
Maximum speed 245 m/min
Closed machine frame
Integrated cabinet
Motion unit for high precision processing
Torque drive with direct linear drives
Automatic pallet changer lengthwise installation
Enclosed beam delivery via laser light cable
Chiller for machine cooling
Integrated electrical cabinets with internal lighting
Power supply for TruDisk by the machine
Ergonomic control panel with touchscreen
Work area lighting
Positioning laser diode
Spray device
PierceLine
FocusLine
NitroLine
PlasmaLine
Automatic nozzle cleaning
Solid-state laser TruDisk 3001 with 1 fiber optic laser output
Laser chiller unit (water-air)
Stimulation via pump diodes
Laser power control
Single cutting head strategy
Protective glass to avoid lens contamination
Online protective glass monitoring
ControlLine
Easy shop floor programming
Fast post-production
19" touch panel
Integrated technology data
Automatic shutdown
Programmable cutting gas pressure
Multi-sheet processing
Microweld
FastLine
AdjustLine
FlyLine
Condition Guide
RJ45 network connection
USB interface
Central Link
CE label
Light barriers
Multi-chamber extraction system
Compact dust extractor
Machine enclosure with certified window (right door)
Electrical curl-up roof
Solid-state laser TruDisk 8001 with 1 laser output
BrightLine fiber
Performance package fusion cut
Highspeed cutting package
Smart Beam Control
Highspeed Eco cutting package
CoolLine
Copper cutting package (with cutting data for N2, O2)
Brass cutting package (with cutting data for N2)
Door window on left side
Integrated video camera 1 for process monitoring (first 2.5 m)
Integrated video camera 2 for process monitoring (up to 4 m)
