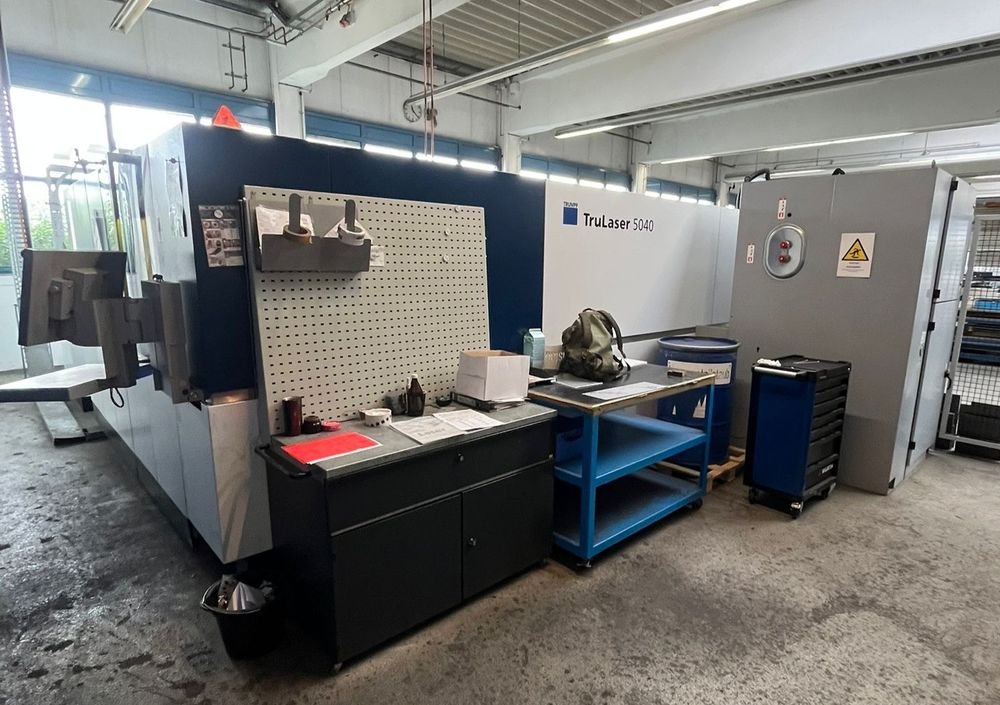

Trumpf TruLaser 5040 fiber (L69) Siemens Sinumerik 840 D

Working Area 4000 x 2000 x 115 mm
Laser rated output 5000 Watt
Control Siemens Sinumerik 840 D
Max. Sheet Thickness 25 mm
Max. Speed 235 m/min
Closed machine frame
Integrated cabinet
Motion unit for high precision processing
Torque drive in combination with direct linear drives
Automatic pallet changer lengthwise installation
Enclosed beam delivery via laser light cable
Chiller for machine cooling
Integrated electrical cabinets with inside light
Power supply for TruDisk by the machine
Wide longitudinal conveyor
Ergonomic control panel with Touchscreen
Work area lighting
Positioning laser diode
Spray device
PierceLine
FocusLine
NitroLine
PlasmaLine
Automatic nozzle cleaning
Solid state laser TruDisk 3001 with 1 fiber optic cable laser output
Laser light cable according standard layout
Laser chiller unit (water-air)
Stimulation via pump diodes
Laser power control
Universal cutting head with complete adaptive lens system
One cutting head strategy
Protection glass to avoid lens contamination
Protection glass monitoring
ControlLine
Easy shop floor programming
Fast post production
Control Sinumerik 840D SL
19" Touch panel
Technology data integrated
Automatic shutdown
Programmable cutting gas pressure
ContourLine
Microweld
FastLine
AdjustLine
FlyLine
Integrated E-Shop
RJ45 network connection and USB interface
CE label
Light barriers
Multi-chamber extraction system
Compact dust extractor
Machine enclosure with certificated window
Electrical curl up roof
Solid-state laser TruDisk 5001 with 1 laser output
Nozzle changer
Copper cutting package
Brass cutting package
BrightLine Fiber
Wide transverse conveyor with tilt container
Door window on left side
Integrated video camera for process monitoring
Drop&Cut
LiftMaster 2040 with exchangeable prongs
Peeling device
Measuring device for thick sheets
Duplex cart for loading and unloading
Storage interface for FMC/Storage Systems
