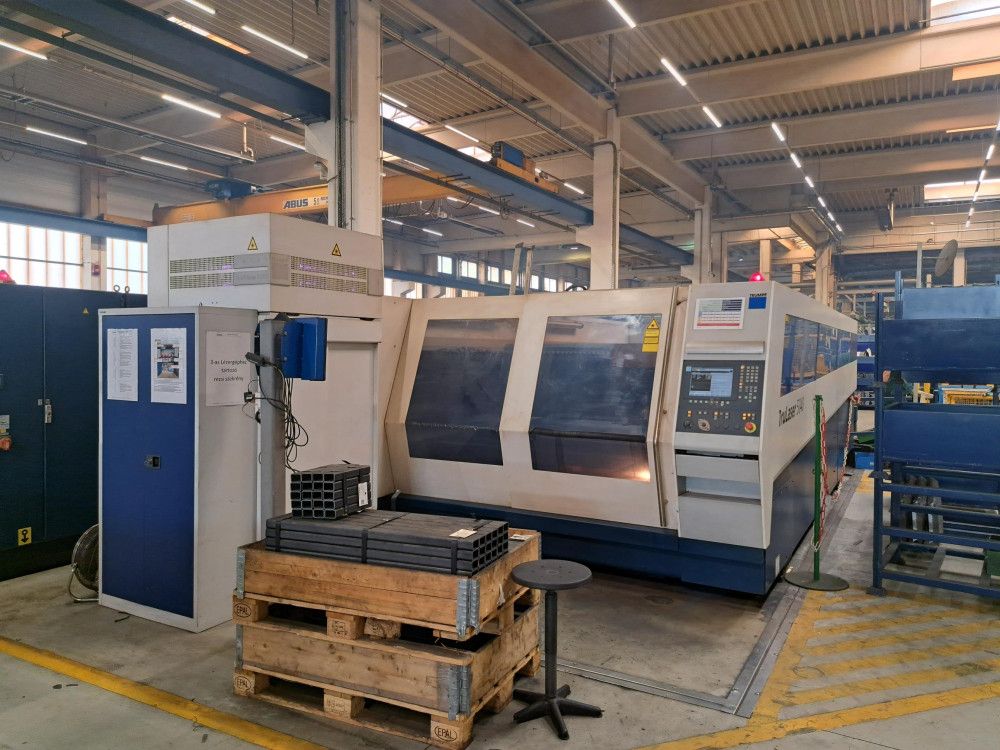

Trumpf TRULASER 5040 L18 TRUMPF CNC- control Basic Siemens SINUMERIK 840D

beam in 50194 h

machine working area
- (X x Y) 4000 x 2000 mm
- Z axis 115 mm

max. sheet thickness
- structural steel 25 mm
- stainless steel 20 mm
- aluminum 12 mm
- max. workpiece weight 1800 kg

max. axis speed
- parallel axis 200 m/min
- simultaneous approx. 300 m/min
- max axis acceleration16 m/s2

accuracy
- smallest programmable path size 0.001 mm
- positioning accuracy 0.05 mm
- repetition accuracy 0.03 mm
- TRUMPF CNC- control Basic Siemens SINUMERIK 840D
- color monitor 12" cm TFT display
- data transfer USB interface
- computing environment PC with embedded Windows XP

laser
- laser type TRUMPF TruFlow 5000
- max. laser power programmable in 1% steps 5000 W
- wavelength 10.6 μm
- beam mode TEM01*

laser consumption values
- laser gas CO2 1 Nl/h
- N2 6 Nl/h
- He 13 Nl/h
- premixed gas 10 Nl/h
- laser cooling closed cooling system

complete equipment
dimensions and weight
- length 13000 mm
- width 5400 mm
- height 2400 mm
- weight 14000 kg
- rated power 33-72 kW
- total network consumption 105 kVA

LoadMaster
- maximum sheet size 3000 mm x 1500 mm
- minimum sheet size 1000 mm x 500 mm
- maximum sheet thickness 25 mm
- maximum sheet weight 900 kg
- weight 2200 kg
- length 3800 mm
- width 2400 mm
- height 2300 mm
- including LOADMASTER
- under power (June 2026)
