Trumpf TruLaser Cell 8030 fiber (L60) Siemens Sinumerik 840 D

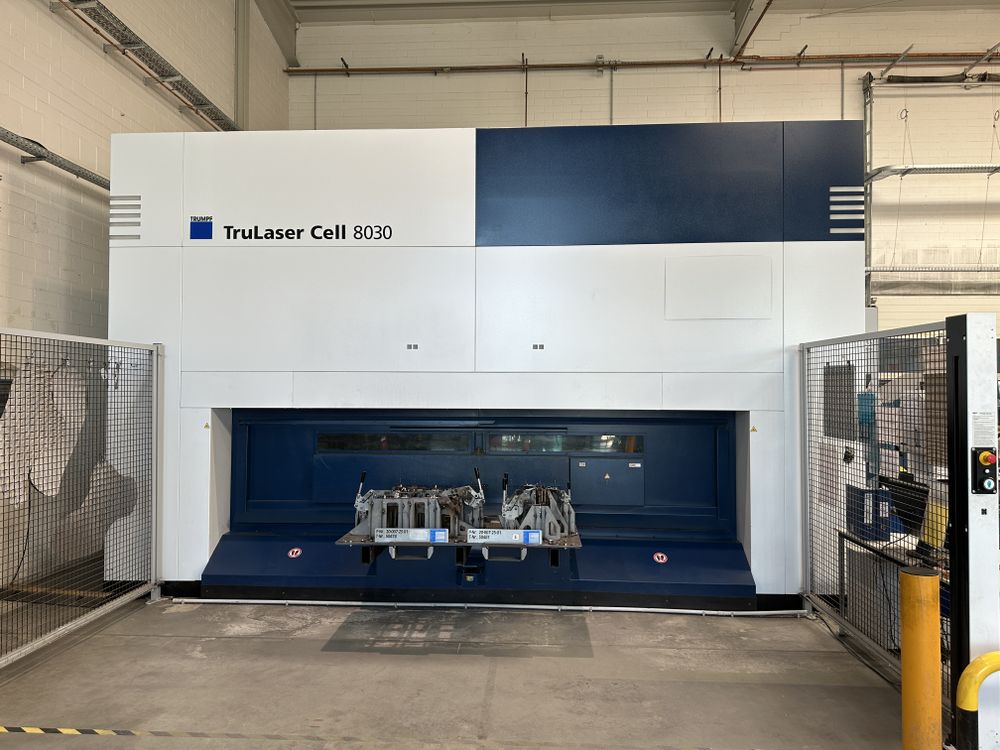

TRUMPF TruLaser Cell 8030 fiber (L60)
Year2023

Working area3000 x 1300 x 600 mm
Laser rated output3000 Watt
Control Siemens Sinumerik 840 D
Max. sheet thick./ST20 mm
Max. sheet thick./VA20 mm
Max. sheet thick./AI15 mm
Max. speed173 m/min

Machine
⦁ X = 3000 mm, Y = 1300 mm, Z = 600 mm
⦁ B = ± 135°, C = n x 360°
⦁ Inclusive dynamic level 3
⦁ 30 m laser light cable
⦁ 21,5" control panel with Touchpoint-HMI
⦁ Teachpanel wiith Teach-Software

Additional equipment

Laser cutting
⦁ CutLine Professional
- Preparation for laser cutting
- Cutting technology tables
- ControlLine

Laser, beam guidance & optic
⦁ TruDisk 3001
⦁ Diode-pumped disc laser with 3000 Watt power at the workpiece
- Beam quality at the incoupling into the LLK 4 mm*mrad for laser light cable ~ 100 µm
⦁ Laser power control
⦁ Number of optical outlets
- Beam guide per outlet with 100 % power
- Including pilot laser per outlet
⦁ Water-Air Chiller
- For TruDisk 3000 and TruDisk 3001
⦁ Dynamic cutting optics f=150
⦁ Adjustment device for cutting optics

Laser cutting process
⦁ Cutting gas nitrogen
- Proportional valve for connecting nitrogen as cutting gas
⦁ FastLine Cell
⦁ Smart Optics Setup Basic
⦁ FocusLine
⦁ Tool radius correction

Workpiece handling
⦁ Rotary table D=4000 mm
⦁ Scrap conveyor for rotary table
⦁ 3 x Horizontal fixture interface
⦁ Control interface, double (RC)

Safety device & periphery
⦁ Exhaust piping
⦁ Compact dust extractor with 4500 m3/h
- Including spark pre-separator and self-cleaning filter mats
⦁ Safety cabin for rotary table
⦁ Basic Loading, rotary table
⦁ Machine status light
