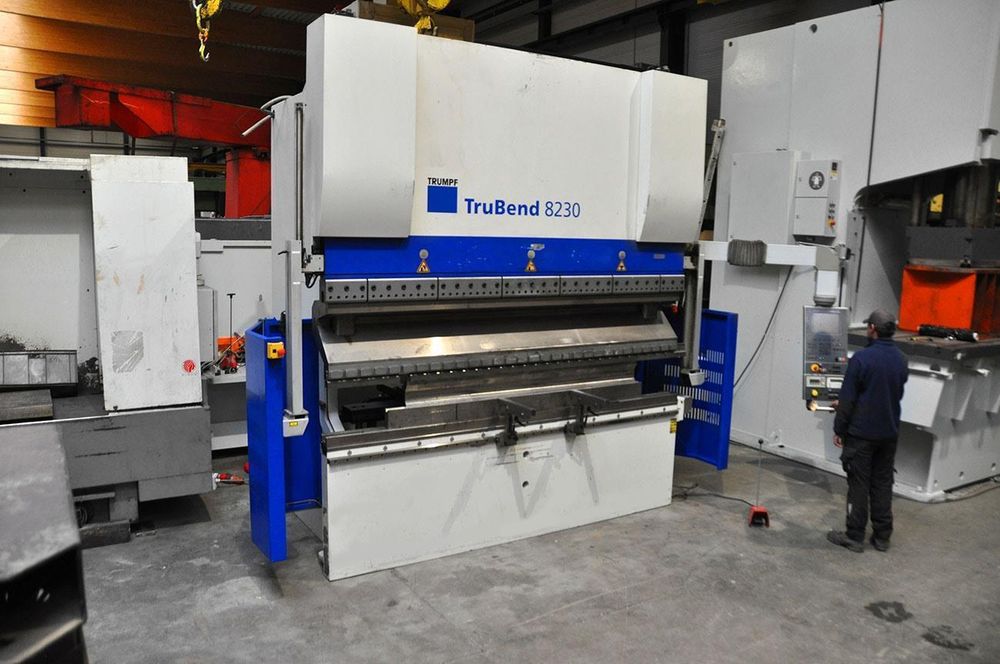

Trumpf TRUMABEND 230 ton x 3050 mm CNC
Ref :
2735037-3-CP
Condition :
Used
Manufacturer :
Trumpf
Model :
TRUMABEND
Pressure :
230 ton x 3050 mm CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force: 230 ton
Backgauge: CNC
Control: Cybelec ModEva 10S
Passage between uprights: 2550 mm
Maximum stroke: 400 mm
Distance table to ram: min 720 mm / max 1120 mm
Throat depth: 405 mm
Locking speed: 220 mm/sec
Working speed: 10 mm/sec
Returning speed: 220 mm/sec
Motor power: 30 kW
Machine length: 5250 mm
Machine depth: 3750 mm
Machine height: 3650 mm
Machine weight: 15 ton
Axes: Y1, Y2, X, X', Z1, Z2, R, V
Ram capacity: 300 ton/meter
Tool holder: Willa
Tool adapter: LVD
Safety system: Lasersafe
