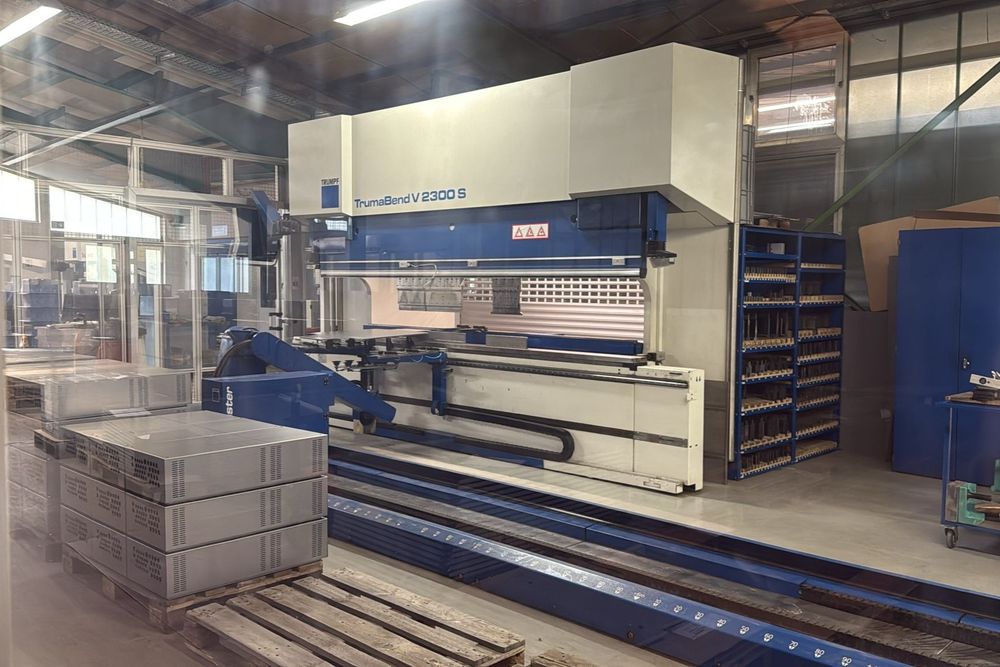

Trumpf TRUMABEND CELL V 2300 SX (B03) 230 t

Press force: 230 t
Bending length: 4250 mm
Stroke: 445 mm
Beam entry: 615 mm
Distance between side frames: 2690 mm
Throat depth: 420 mm

Control: TASC 6000
Network compatible
Electronic pressure compensation
Glass scale measuring system with temperature compensation

Electro-hydraulic downstroke drive
4-cylinder technology
Proportional valve technology
Switchable double pump
Block hydraulics with cylinder-mounted control valves

Manual crowning wedge integrated in table
CNC crowning
Upper tool clamping New Standard Clamping
Upper tool clamping hydraulic
Lower tool clamping hydraulic
Programmable lower tool shifting pneumatic
Self-centering upper tool clamping
Vertical tool change

Backgauge X axis
Backgauge R axis
4-axis backgauge system
Rack-and-pinion backgauge drive
Front-adjustable stopper fingers

Stable welded steel machine frame
Torsion-resistant ram
Spherical ram suspension with inclination
Switch cabinet air conditioning

Integrated side safety doors
Automatic rear roll-top
BendGuard safety system 220 mm/s

Preparation ACB

BendMaster automation basic system
Manipulator
Sheet sensor
Rotary harness D axis
Vacuum system for suction grippers
Safety fence with access door
Comfort operation monitor
Mouse
Keyboard
