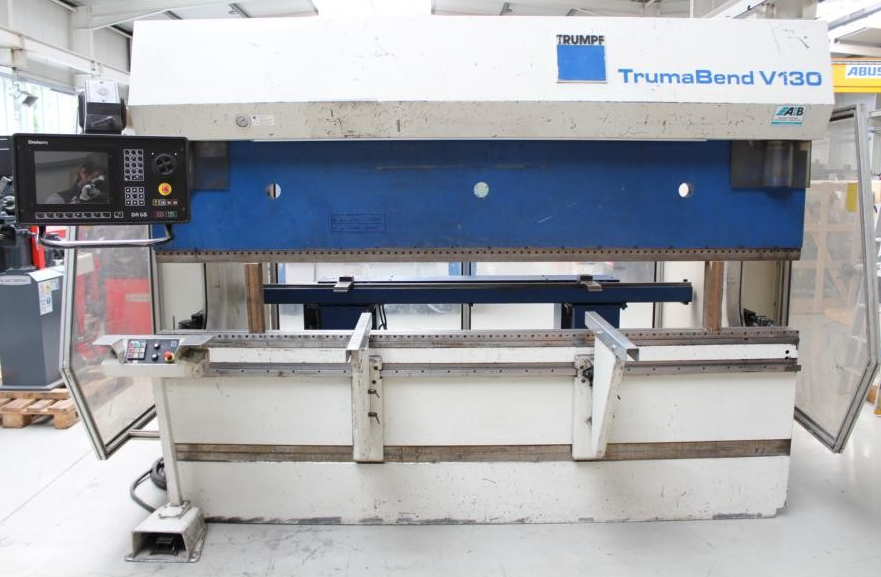

Trumpf TRUMABEND V 130 130 t

Pressure: 130 t
Chamfer length: 3060 mm
Distance between columns: 2690 mm
Column arm: 410 mm
Stroke: 215 mm
Daylight: 385 mm
Adjustment speed: 200 mm/sec
Working feed: 1-10 mm/sec
Return speed: 135 mm/sec
Table width: 120 mm
Table height: 1050 mm
Tiltable up to: +/- 10 mm
Number of working hours: 53,820 h
Compressed air: 5.0 - 7.0 bar
Oil volume: 250 l
Operating pressure: 340 bar
Voltage: 400 V
Total power requirement: 16.0 KVA
Weight approx.: 11,250 kg
Range L-W-H: 3640 x 2210 x 2375 mm
Control type: CNC
CNC control: DELEM DA 65
Swiveling control panel, front left
2D graphic programming & product display
Tool & program library
New TFT-LCD industrial monitor
CNC controlled axes: Y1 + Y2 / X / R
CNC electro-motor controlled back stop (X axis)
CNC electro-motor controlled height adjustment (R axis)
Manual adjustment of the 2x stop fingers (Z axes)
Manual adjustment of die displacement (I axis)
WILA manual table crowning, analog value display
TRUMPF hydraulic upper tool clamp
TRUMPF manual lower tool clamp
1x freely movable 2 hand / foot control
Safety device at the rear (sliding door)
Safety device at the side (swinging door)
Original operating instructions + CE declaration + circuit diagram
