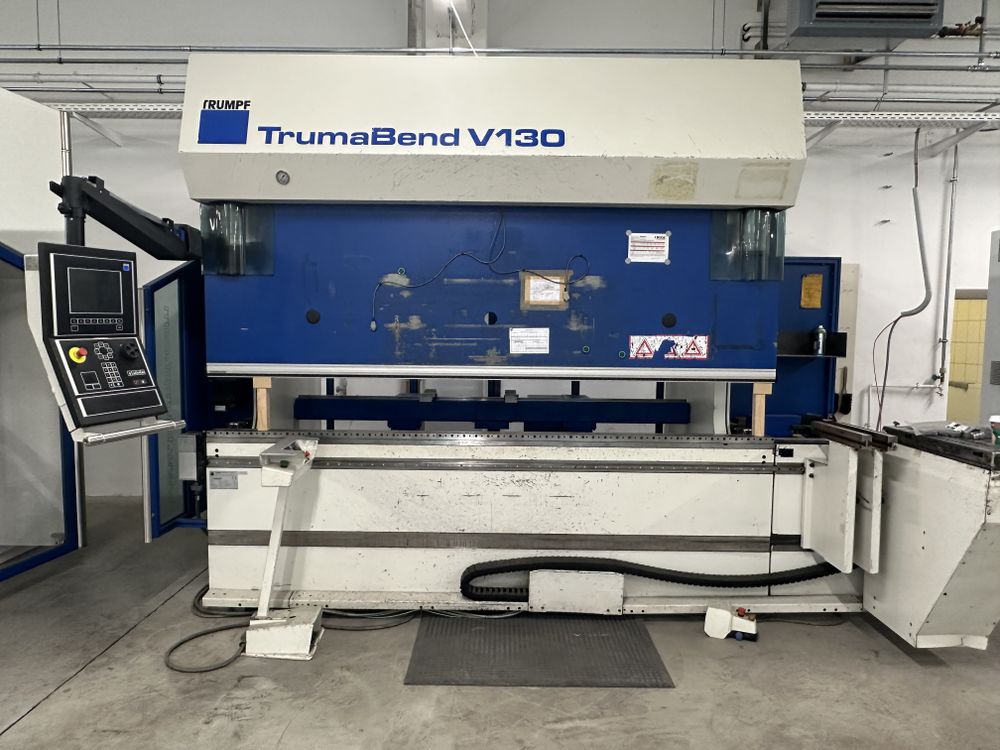

Trumpf TrumaBend V 130 X 130 tons

Press force: 130 tons
Bending length: 3060 mm
Stroke: 365 mm
Beam entry: 535 mm
Distance between side frames: 2690 mm
Throat depth: 410 mm
Control: Delem DA 69

Features / Equipment:
Stable all-steel welded machine frame
Ram highly resistant to torsional forces
Electrohydraulic downstroke drive with proportional valves
Block hydraulic system
CNC backgauge with rack-and-pinion drive (X and R axes)
Safe front adjustment of stop fingers
“Modufix” manual upper tool clamping
Manual lower tool holder for single-V dies with programmable shifting
2D graphic control with 12" grayscale screen (VGA)
Standard safety equipment
CNC crowning
Die space and stroke extension +150 mm (open height 535 mm)
Hydraulic upper tool clamping
Hydraulic lower tool clamping
2 front support brackets
1 bending aid arm
Parking position 190 mm
Table extension for bending aid (right and left)
4-axis backgauge system
BendGuard safety device
Preparation for ACB system
2D control with color monitor
Shopfloor programming
