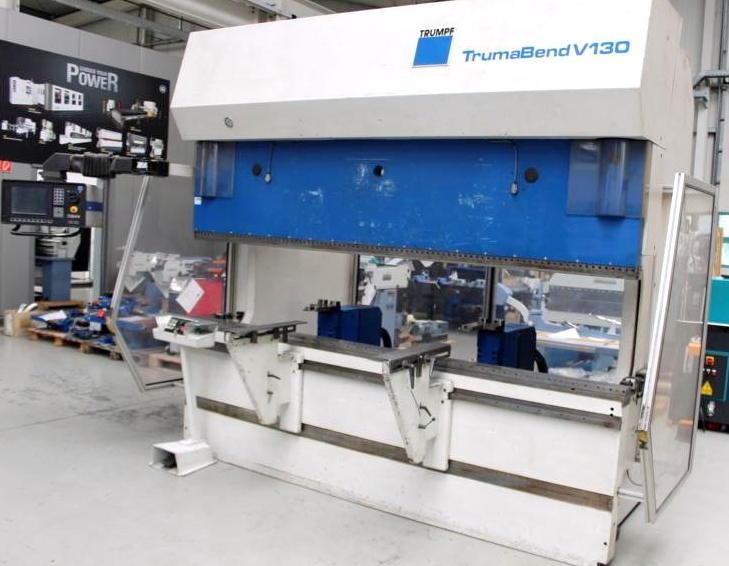

Trumpf TRUMABEND V 130

Press force: 130 t
Chamfer length: 3060 mm
Distance between columns: 2690 mm
Column arm: 410 mm
Stroke: 365 mm
Daylight: 535 mm
Adjustment speed: 200 mm/sec
Working feed: 1.0 - 10.0 mm/sec
Return speed: 135 mm/sec
Table width: 120 mm
Table height: 1050 mm
Tiltable up to: +/- 10.0 mm
Operating hours: ca. 31,800 h
Compressed air: 5.0 - 7.0 bar
Oil volume: 250 l
Operating pressure: 340 bar
Voltage: 400 V
Total power requirement: 23.0 KVA
Weight: 12,950 kg
Machine size (L-W-H): 3660 x 2310 x 2900 mm

Features / Equipment
CNC electro-hydraulic press brake
DELEM CNC control DA 65
Swiveling control panel, front left
2D graphic programming & product display
Tool & program library
USB keyboard and mouse interface
CNC-controlled axes Y1+Y2
CNC-controlled axes X1+X2
CNC-controlled axes R1+R2
CNC-controlled axes Z1+Z2
CNC-controlled axis I
CNC-controlled back stop (X1+X2)
CNC-controlled height adjustment of the back stop (R1+R2)
CNC-controlled adjustment of the stop fingers (Z1+Z2)
CNC-controlled pneumatic die displacement (I axis)
CNC WILA electro-motoric table crowning
TRUMPF hydraulic upper tool clamping
TRUMPF manual lower tool clamping
1x freely movable 2-hand/foot control
Safety device at the rear (sliding door)
Safety device at the side (swinging door)
Original operating instructions + spare parts list
