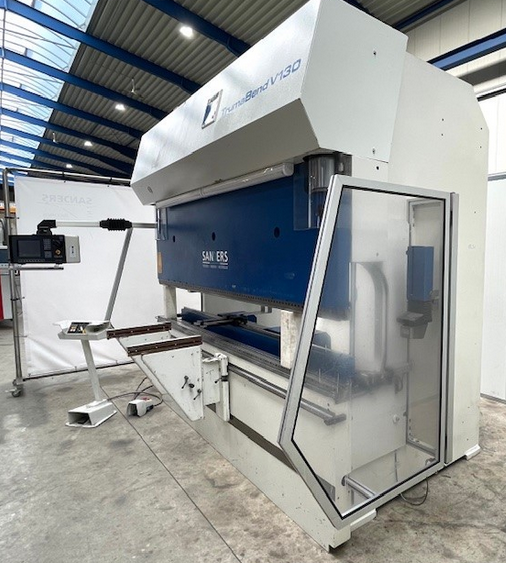

Trumpf TRUMABEND V 130

Press force: 130 t
Bending length: 3060 mm
Distance between columns: 2690 mm
Column arm: 410 mm
Stroke: 365 mm
Daylight: 535 mm
Adjustment speed: 200 mm/sec
Working feed: 1.0–10.0 mm/sec
Return speed: 135 mm/sec
Table width: 120 mm
Table height: 1050 mm
Tiltable up to: ±10 mm
Hours of operation: 31,800 h
Compressed air: 5–7 bar
Oil volume: 250 l
Operating pressure: 340 bar
Voltage: 400 V
Total power requirement: 23 kVA
Weight: 12,950 kg
Machine footprint (L×W×H): 3660 × 2310 × 2900 mm

CNC electro-hydraulic folding/die bending press
DELEM CNC control with swiveling front-left operation
High-resolution graphic screen
Graphical 2D programming
Automatic bending sequence calculation
Collision detection
Large tool & product library
CNC axis adjustment: Y1, Y2, X, R axes with crowning
Manual adjustment of stop fingers (Z axes)
CNC electro-motorized table crowning
CNC electro-pneumatic die displacement (I axis)
Hydraulic upper tool clamping (WILA/TRUMPF)
Hydraulic lower tool clamping (WILA/TRUMPF)
2 front support arms (movable)
Freely movable 2-hand/foot control
Freely movable foot switch
Lateral safety device (hinged doors)
Rear safety device (sliding doors)
Original operating instructions (French)
