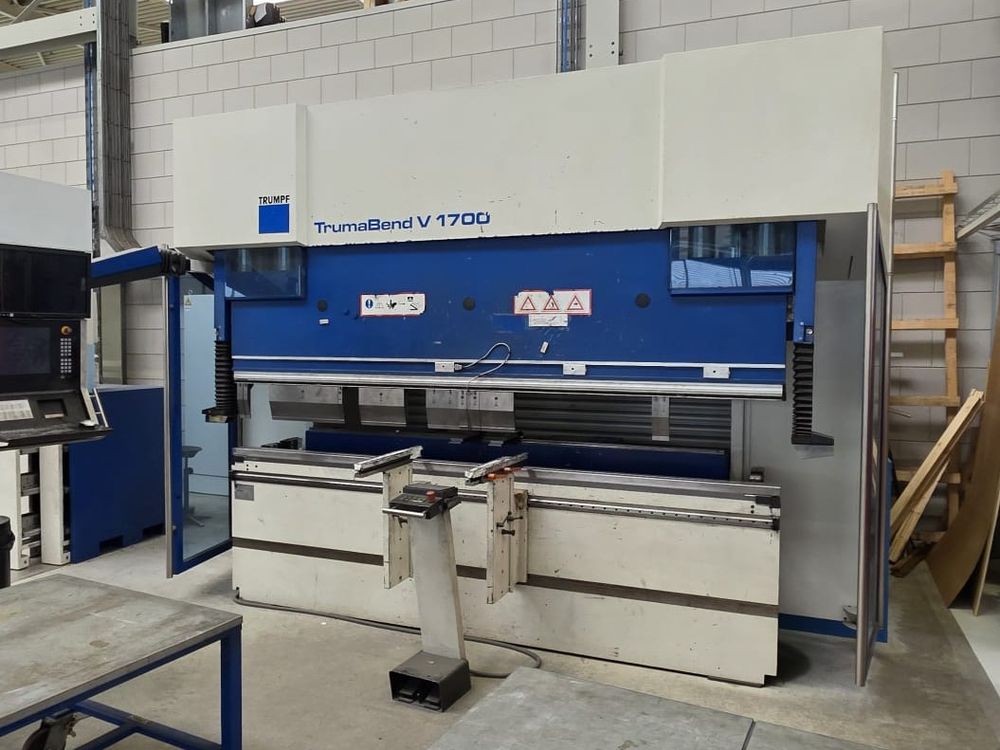

Trumpf TrumaBend V 1700 (B03) 170 t

Press force: 170 t
Bending length: 3230 mm
Stroke: 445 mm
Beam entry: 615 mm
Distance between side frames: 2690 mm
Throat depth: 420 mm
Control system: TASC 6000

Welded all-steel machine frame
High torsional stiffness ram
Electrohydraulic downstroke drive with proportional valves
Block hydraulics
CNC backgauge with rack-and-pinion drive
Backgauge X axis
Backgauge R axis
Front-adjustable stop fingers
Upper tool clamping system New Standard Clamping II
Manual upper tool clamping
Lower tool holder for EV dies
Hydraulic lower tool clamping
Programmable shifting with 2 positions
Integrated side safety doors
Automatic back roll-top safety system
Switch cabinet air conditioning
Network compatibility
Manual crowning centrally adjustable
CNC crowning
4-axis backgauge system
Hydraulic upper tool clamping
ACB preparation
BendGuard safety device for 220 mm/s
2 front support brackets
