Trumpf TrumaBend V 850 SX 85 to

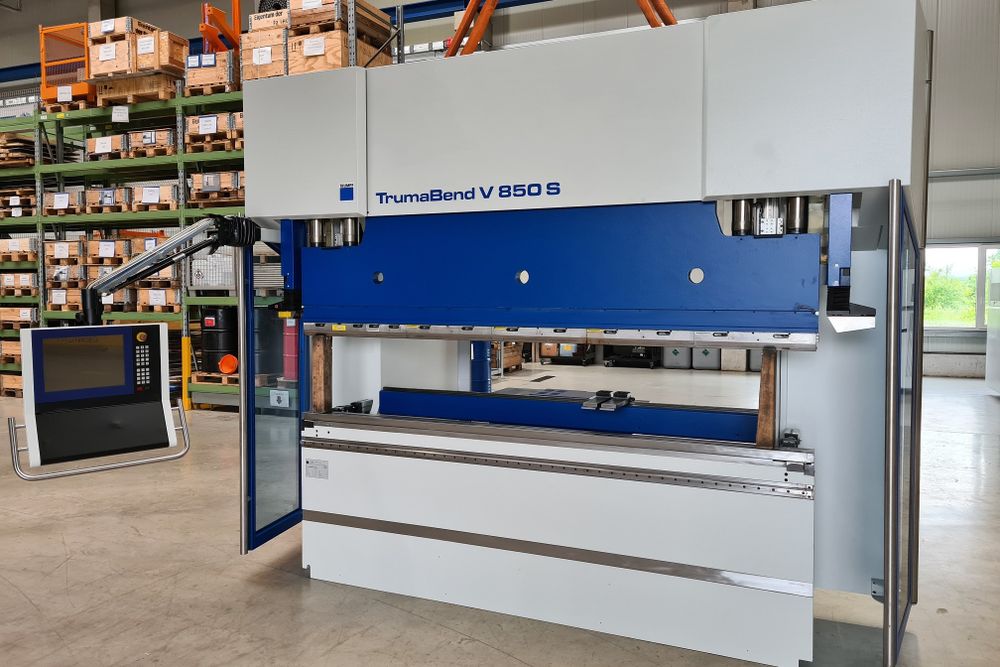

TRUMPF TrumaBend V 850 SX
Year 2005

Bending length2720 mm
Press force 85 to
ControlTASC 6000
Stroke445 mm
Beam entry615 mm
Distance between side frames2260 mm
Throat420 mm

Standard configuration
Machine
⦁ Stable machine frame as a welded, all-steel construction
⦁ Ram (press beam), highly resistant to torsional forces
⦁ Spherical suspension and inclination of the beam
⦁ Electrohydraulic downstroke drive with 4 cylinders technology
⦁ Proportional valve technology and switchable double pump
⦁ Modern block hydraulics with control valves fitted on the cylinder
⦁ Electronic pressure compensator
⦁ Measuring system with centrically mounted glass scales and temperature compensation
⦁ Wedge crowning integrated in the table, manual
⦁ Upper tool system "New Standard" manual, hardened and self-centering for vertical tool changing
⦁ Lower tool shifting programmable ( pneumatic, two positions)
⦁ Backgauge system 2 axis with rack-and-pinion drive, for X and R axis,
safe adjustment of 2 stopper finger from the front
⦁ Machine control: TASC 6000
⦁ Control panel panel with LCD keyboard
⦁ Foot switch (emergency-open and emergency-off stop)
⦁ Safety equipment: Integrated side doors and automatic roll-top in the back
⦁ Switch cabinet air-conditioning (air/air heat exchanger)
⦁ Oil cooler
⦁ Network compatible
⦁ Modern machine design

Additional equipment
⦁ 4 axis backgauge system with switch cabinet cooling (air-air heat exchanger)
⦁ Extension of die space (open height) up to 615 mm
⦁ Hydraulic upper tool clamping
⦁ CNC crowning
⦁ Preparation ACB
⦁ BendGuard (for 200 mm/s)
⦁ 2 support brackets
