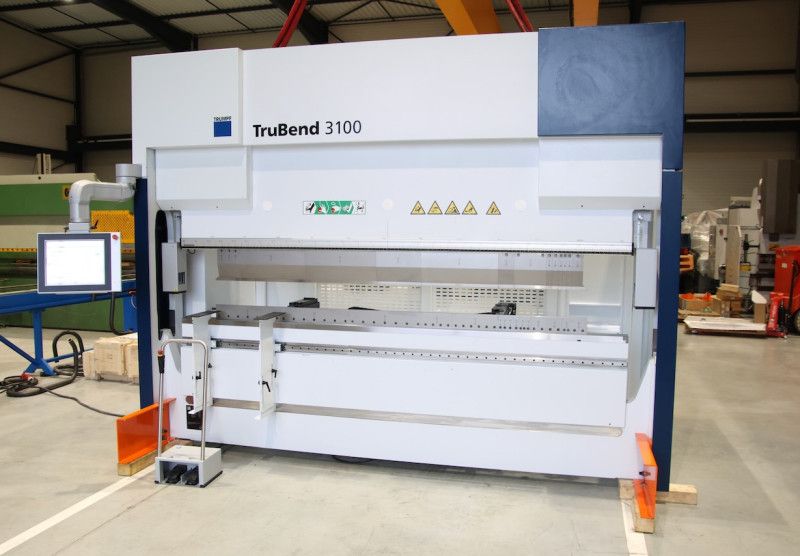

Trumpf TRUBEND 3100 X 100 tonnes
Ref :
2771169-3-GO
Condition :
Used
Manufacturer :
Trumpf
Model :
TRUBEND 3100 X
Pressure :
100 tonnes
Year(s) :
2019
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force: 100 tonnes
Folding length: 3060 mm
Distance between uprights: 3384 mm
Slide stroke: 350 mm
Motorized rear stop stroke: 560 mm
Table-slider passage: 500 mm
Main engine power: 24 KVA
Machine dimensions L x W x H: 3607 x 1644 x 2800 mm
CNC axes: Y1/Y2/X/X2/R/Z1/Z2
Protective laser
CN crowning table
CN DELEM T3500T
Machine currently tooled to a length of 2550 mm
1 V-block of 6 mm length 2550 mm supplied as an addition
Above-ground machine
