Trumpf TrumaBend V130 130 ton × 3100 mm
Ref :
2730599-3-CP
Condition :
Used
Manufacturer :
Trumpf
Model :
TrumaBend V130
Pressure :
130 ton × 3100 mm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

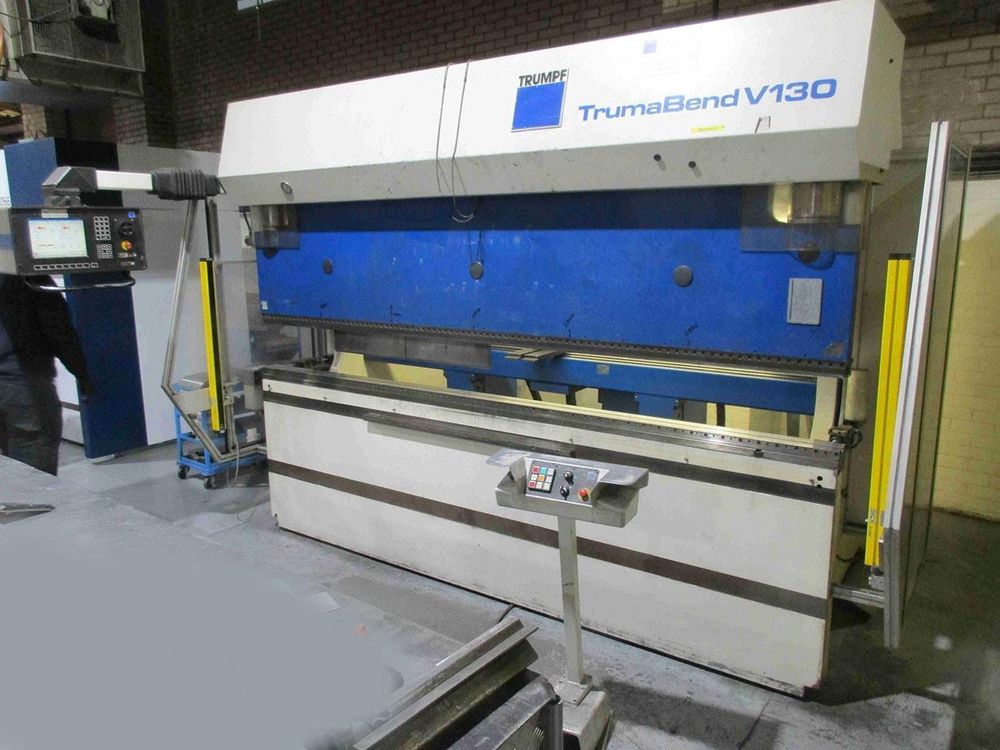

Trumpf TrumaBend V130
Technical data
Capacity: 130 ton × 3100 mm
Backgauge: CNC
Control: Delem
Passage between uprights: 2690 mm
Max stroke: 365 mm
Max distance between table and ram: 632 mm
Depth of throat: 410 mm
Table width: 120 mm
Locking speed: 200 mm/sec
Working speed: 10 mm/sec
Returning speed: 135 mm/sec
Electric motor power: 19 kW
Power needed: 380 V
Length: 3640 mm
Depth: 2060 mm
Height: 2375 mm
Weight: 11.5 ton
Axes: Y1 / Y2 / X1 / X2 / R1 / R2 / Z1 / Z2 / T1 / V / I
T1 axis: CNC controlled bending aids
Tooling: Wila Modufix tooling
