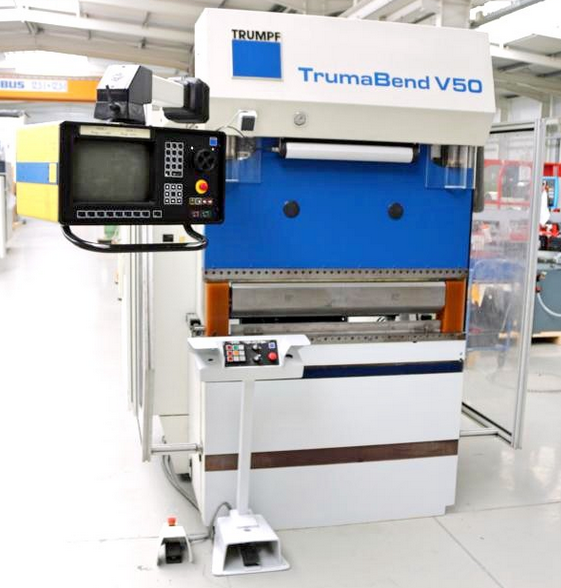

Trumpf TRUMABEND V50 50.0 t

press force: 50.0 t
bending length: 1275 mm
distance between columns: 1040 mm
throat depth: 410 mm
table width: 100 mm
adjustment speed: 200 mm/sec
working feed: 1–10 mm/sec
return speed: 135 mm/sec
stroke: 215 mm
daylight: 385 mm
tilting range: ±10 mm
table height: 1050 mm
X-axis travel range: 600–860 mm
X-axis traversing speed: 500 mm/sec
R-axis travel: 250 mm
R-axis traversing speed: 300 mm/sec
control: DELEM DA 65
oil volume: 80.0 L
compressed air: 6.0 ± 1.0 bar
total power requirement: 8.0 KVA
machine weight: approx. 4750 kg
machine dimensions (LxWxH): 1930 x 2030 x 2375 mm

CNC electro-hydraulic press brake
pivoting control panel, front left
2D graphic product display
tool and program library
CNC-controlled axes Y1 + Y2
CNC-controlled backgauge (X axis)
CNC-controlled backgauge height adjustment (R axis)
CNC-controlled pneumatic die shift (I axis)
4 manually adjustable stop fingers
TRUMPF hydraulic upper tool clamp
1 set of split upper tools (1030 mm)
TRUMPF hydraulic lower tool clamp
1 set of split lower tools (1030 mm)
free-moving 2-hand/foot control
free-moving foot switch
rear safety device (pivoting door)
left side safety device (swinging door)
right side safety device (swinging door)
original operating instructions
