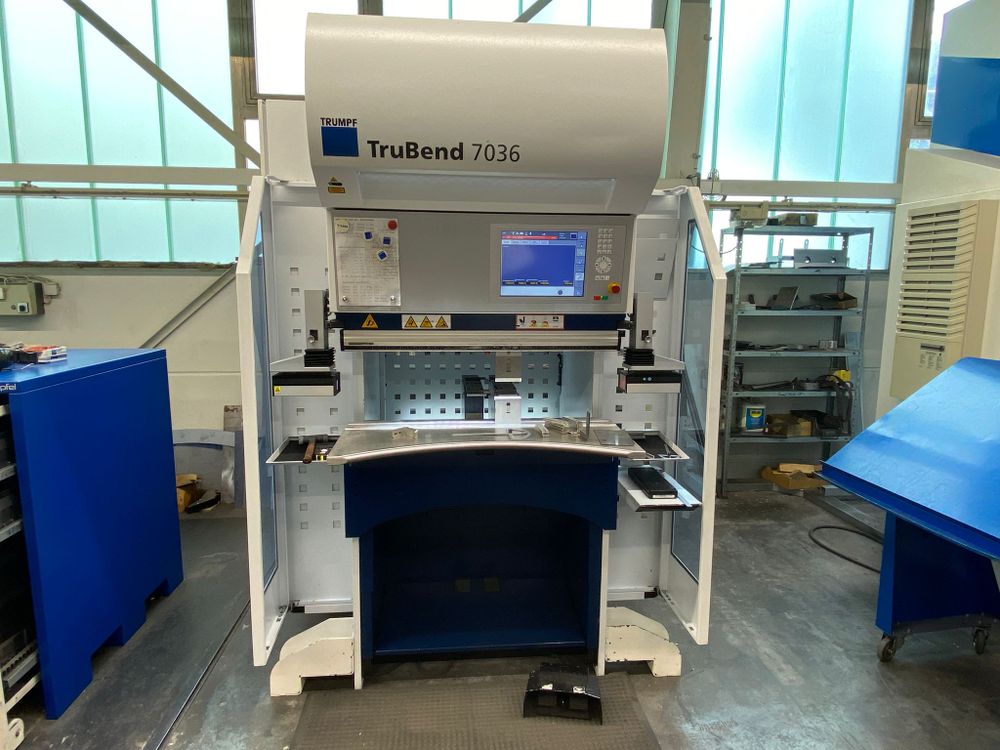

Trumpf TruBend 7036 (B19) 36 Ton

Press Force: 36 Ton
Bending Length: 1020 mm
Distance Between Side Frames: 932 mm
Beam Entry: 295 mm
Throat Depth: 150 mm
Control: TASC 6000

C-Frame
Press Beam
Highly Dynamic Electromechanical Direct Drive
Distance Measurement System Y-Axis with Dynamic Deflection Compensation
Electrical Cabinet Air Conditioning up to 40 °C Ambient Temperature

3-Axis Backgauge System
Carbon Fiber Gauge Finger
X-Axis Backgauge
R-Axis Backgauge
Z-Axis Backgauge

Manual TRUMPF Upper Tool Clamp
Manual TRUMPF Lower Tool Clamp

Integrated TRUMPF Technology Data
Data Transfer
Network Capability
USB Interface

Foot Switch

CE Marking
Standard Safety Device

6-Axis Backgauge System

Comfort Support Table Front
Comfort Foot Rest
Front Work Area LED Illumination
Swiveling Control Panel
Sitting and Standing Aid
2 Support Consoles
2 Document Storage Units

Graphic Shop Floor Programming
Automatic TRUMPF Tool Clamps
BendGuard with Block Laser

Operator Controlled Bending OCB
Digital Angle Measuring Device
Wireless Bluetooth Connection to Machine Control
