Trumpf TruMatic 1000–1300 fiber (K07) (FMC) Bosch CML 45

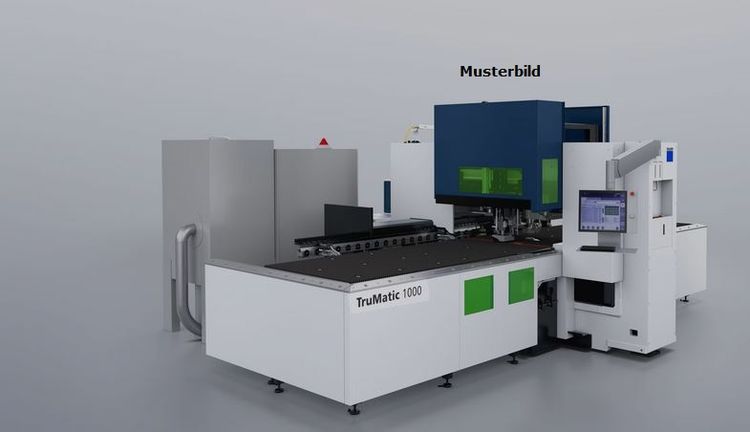

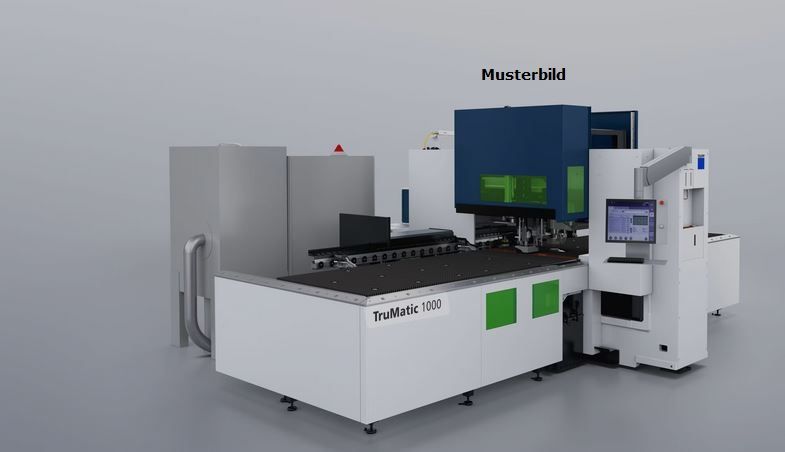

TRUMPF TruMatic 1000–1300 fiber (K07) (FMC)
Year: 2019

Working Area: 2500 x 1250 mm
Laser Rated Output: 3000 W
Punching Force: 16.5 t
Max Sheet Thickness: 6.4 mm
Max Material Weight: 150 kg
Control: Bosch CML 45

Machine
⦁ Box frame
⦁ Hybrid axis system
⦁ Linear magazine with 20 stations for clamps and tools
⦁ Hydraulic clamps (3x)
⦁ Drives with maintenance-free three-phase motors
⦁ Repositioning device with programmable presser foot
⦁ Foot switch for closing clamps
⦁ Part chute, right
⦁ Part removal flap, left
⦁ Sensor for part removal flap
⦁ Work area illumination
⦁ FocusLine
⦁ SortMaster Compact retrofit capability

TRUMPF laser
⦁ LLK according to standard layout (10m)
⦁ Laser power control
⦁ Laser log function
⦁ Closed beam guidance via laser light cable (LLK)
⦁ Separate energy supply of the TruDisk

Compact cutting unit
⦁ Solid-state laser compact cutting unit
⦁ Protective glass
⦁ Protection from collision
⦁ ControlLine

Punching head
⦁ Delta Drive
⦁ Rotary single station tool adapter
⦁ Programmable presser foot position
⦁ Tool length compensation
⦁ Punch spray lubrication
⦁ Punching slug vacuum
⦁ Forming function
⦁ Punch stroke counter

Control
⦁ TRUMPF control based on Rexroth IndraMotion MTX
⦁ Touch panel with TFT 19" color screen
⦁ Integrated technology data
⦁ Programmable cutting gas pressure
⦁ Remote support interface
⦁ Auto-shutdown with wake-up function
⦁ Program manager
⦁ Production plan

Data transmission
⦁ USB interface
⦁ RJ45 network interface
⦁ Central Link
⦁ Online Update Manager
⦁ Safety
⦁ CE marking
⦁ Double-beam safety light barrier

Advanced standard configuration
⦁ Solid-state laser TruDisk 3001 with 1 LLK output
⦁ Process cooler (water-air)
⦁ Compact dust extractor
⦁ 1st index pin (inside right)
⦁ Ball tables
⦁ Part chute for finished part container
⦁ Chip container to the rear when removing

Additional equipment

Advanced laser Equipment
⦁ Second laser output ex works for use of another TRUMPF system
- Separate TruDisk energy supply TruDisk to be provided by the customer
⦁ Compressed-air cutting
⦁ Copper cutting package
- O2 and N2 cutting data
⦁ Brass cutting package
- N2 cutting data

Advanced punching equipment
⦁ MultiTool function
⦁ MultiShear function
⦁ MultiBend function
⦁ Tapping function with thread counter
⦁ Forming tap breakage control
⦁ Lubricant level monitoring
⦁ Marking/quick beading function
⦁ Engraving function
⦁ Deburring and roller technology function
⦁ Small part ejection function
⦁ Adaptive stroke calibration
⦁ 2Die spray lubrication with level monitoring
⦁ Smart punch monitoring

Part removal
⦁ Integrated sorting function for part chute
- Sensor for part chute
- Container row for four standard containers 300 x 400 mm
- Customer-provided containers

Advanced machine equipment
⦁ Additional clamp
⦁ 4 x Individually opening clamp
⦁ 4 x Height-adjustable clamp
⦁ Vibration damping
⦁ Chip conveyor with tipping container
⦁ Machine status light

Special thin sheet processing
⦁ Brush tables
⦁ Raisable brush fields
- Pneumatically raisable brush fields on part removal flap, in machine frame and support table
- Up to 4 mm material thickness can be processed
⦁ Loading and unloading aid for brush tables
⦁ Warped sheet detection

Compact dust extractor options
⦁ CO2 extinguisher system for compact dust extractor
⦁ Connector, exhaust line - compact dust extractor

Data transmission
⦁ MobileControl app
- Requirement: Wireless Operation Point
⦁ Wireless Operation Point
⦁ MDA interface

Automation

SheetMaster Compact
⦁ SheetMaster Compact 2500 x 1250 mm
- Loading station with fanning magnet for sheet separation
- Suction frame
- Vacuum sensor system
- Double sheet detection
- Unloading cart for scrap skeleton and microjoint sheets
- 2nd operator position for loading and unloading

SortMaster Compact
⦁ SortMaster Compact
- Machine-integrated automated small parts removal
- Suction frame for unloading good parts up to 600 x 400 mm (X x Y)
- Two suction cup slats (each suction cup can be adjusted individually)
- Unloading area (600 x 800 or 1200 x 800 mm with X-axis extension)
- Vacuum sensors for the suction circuits
