Trumpf TruMatic 6000 - 1300 (K05) CNC CONTROL

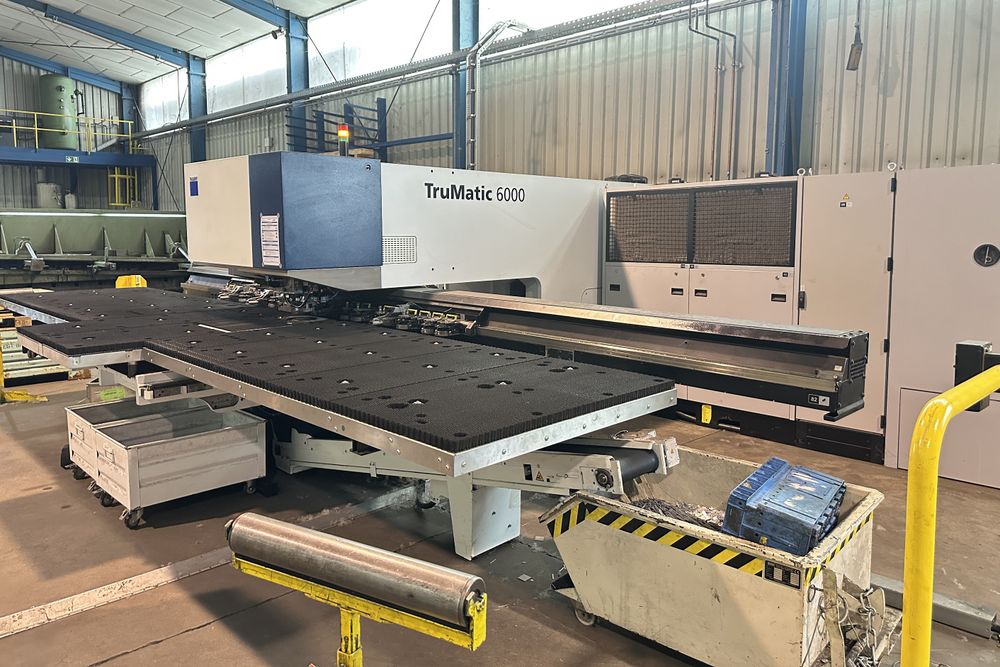

TRUMPF TruMatic 6000 - 1300 (K05)
Year 2015

Working area2500 x 1250 mm
Laser rated output3200 Watt
ControlSiemens Sinumerik 840 D
Punching force22 to
Max. sheet thick8 mm
Max. material weight200 kg

Machine
⦁ Stable C-frame for easy access
⦁ Coordinate guide for high-precision machining
⦁ Drives with maintenance free 3-phase servo motors
⦁ Linear magazine with 23 tool stations and 2 clamps
⦁ Repositioning unit with programmable stripper
⦁ Footswitch for clamp closing
⦁ 1st index pin position right hand inner side
⦁ Ball-fitted tables
⦁ Two parts chutes 500 x 500 mm
⦁ 2 good parts container
⦁ Chip container
⦁ FocusLine
⦁ NitroLine
⦁ FastLine
⦁ FlyLine
⦁ Ejection cyrlinder for laserparts
⦁ Slag cone detection

TRUMPF Laser
⦁ Laser TruFlow 3200 incl. LensLine and optimized stand-by mode
⦁ Radio-frequency excitation
⦁ Chiller unit
⦁ Laser control TASC
⦁ Encapsulated beam delivery

Punching station
⦁ Electro-hydraulic punching head
⦁ Rotatable single tool adapter
⦁ Programmable presser foot with selectable presser foot down force
⦁ Tool length compensation
⦁ Punch stroke rate and thread stroke rate counters
⦁ Spray lubrication for punches
⦁ Vacuum slug removal
⦁ Calculation of fill level in die base
⦁ Monitoring of fill level of tapping and tool lubrication

Cutting head
⦁ Lens cutting head with 170 mm focal length
⦁ Universal cutting head quick-change device
⦁ ControlLine

Control
⦁ Open controller based on Bosch Rexroth IndraMotion MTX
⦁ Control panel with 17,0“ TFT touch screen
⦁ NC program management
⦁ Integrated technology data
⦁ Programmable cutting gas pressure
⦁ Auto-shutdown with wake-up mode
⦁ Production plan

Programming
⦁ Advanced workshop programming
⦁ Data transmission
⦁ USB interface and network connection RJ45

Safety
⦁ CE marking
⦁ Two-beam light barriers
⦁ Monitoring system for gas pressure, temperature and cooling water
⦁ Rapid hydraulic shutdown
⦁ Laser guard against scattered radiation
⦁ Compact dust extractor

Additional equipment

Laser options
⦁ Laser TruFlow 3200 with LensLine and optimized Standby
⦁ Compressed air cutting

Punching options
⦁ Function MultiTool
⦁ Function slitting
⦁ Function engraving
⦁ Function SoftPunch
⦁ Die spray lubrication with monitoring of fill level
⦁ Descending die
⦁ Function integrated flattening
⦁ Smart Punch Monitoring (breakage control for punch)

Machine options
⦁ 2 additional clamp
⦁ 4 clamps opening individually
⦁ 2 height-adjustable clamps
⦁ Repositioning cylinders
⦁ Installation on air cushions
⦁ Chip conveyor with tilt container
⦁ Switch cabinet lighting
⦁ Machine status lamp

Options for thin sheet processing
⦁ Brush tables with loading and unloading aid
⦁ Blow-out device for small parts
⦁ Sheet collision detection

Data transfer
⦁ Wireless Operation Point (prerequisite for MobileControl App and Visual Online Support)
⦁ MobileControl App (clearing of machine option, download of app via App Store)
⦁ MDR interface (machine data recording)
