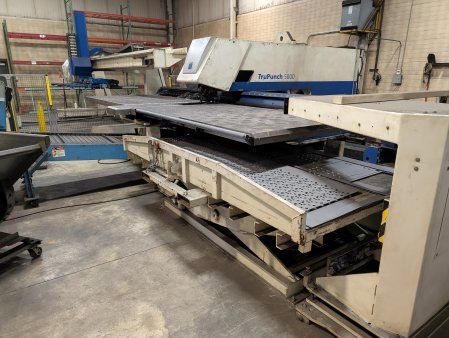

Trumpf TRUPUNCH 5000-1600 25 ton
Ref :
2767609-3-MT
Condition :
Used
Manufacturer :
Trumpf
Model :
TRUPUNCH 5000-1600
Pressure :
25 ton
Year(s) :
2008
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Press force: 25 ton
X-axis travel: 3050 mm
Y-axis travel: 1550 mm
Maximum material thickness: 8 mm
Maximum workpiece weight: 280 kg
Punching stroke rate: 1350 HPM
Marking stroke rate: 3000 HPM
Control type: CNC
CNC control: Siemens
Frame design: J-frame
Maximum number of tools: 21
Maximum number of clamps: 4
Tool change time: 0.3 sec
Tooling type: Trumpf
Automatic sheet repositioning: Yes
Clutch and brake type: Fully hydraulic
Main power supply: 460 V / 60 Hz
Connected load: 38 kVA
Full load current: 55 A
Features / Options:
SheetMaster load system
SheetMaster unload system
