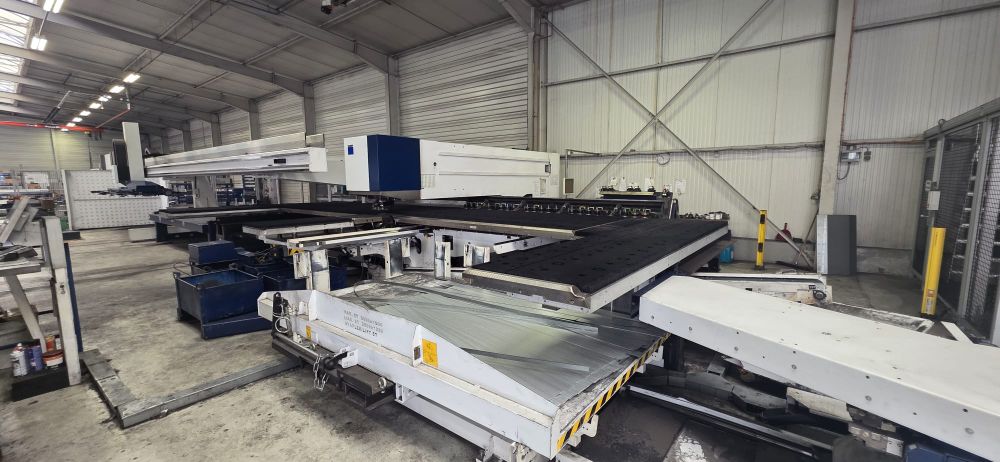

Trumpf TRUPUNCH 5000 - 1600 (S12) (FMC) 22 Tons

Punching Force: 22 Tons
Working Area: 3050 × 1550 mm
Maximum Sheet Thickness: 8 mm
Maximum Material Weight: 230 kg
Control: Siemens Sinumerik 840D Solution
Stable C-Frame
Linear Magazine
4 Clamps
Parts Flap 500 × 500 mm
Good Parts Container
ToolMaster Linear Retrofit Ready
Electro-Hydraulic Punching Head
Rotatable Single Tool Adapter
Programmable Presser Foot
Stripper Position Sensor
Tool Length Compensation
On-Demand-Drive
Punch Stroke Rate Counter
Thread Stroke Rate Counter
Spray Lubrication for Punches
Vacuum Slug Removal with Condition Monitoring
Tapping Lubrication Fill Level Monitoring
Tool Lubrication Fill Level Monitoring
17" TFT Touch Screen
USB Interface
RJ45 Network Connection
CE Marking
Multi-Beam Light Barriers
Rapid Hydraulic Shutdown
Sheet Collision Detection
MultiTool Function
MultiShear Function
Marking Function
Rapid Beading Function
Deburring Function
Roller Technology
Active Die
Brushed Parts Chute
Engraving from Below Technology
High-Adjustable Clamps
Part Chute Sensor
Air Cushion Installation
Chip Conveyor with Tilt Container
Brush Tables
Loading Aid
Unloading Aid
Variable Table Removal: 500 mm
SheetMaster AS15
Automated Sheet Handling System
Maximum Sheet Format: 4000 × 1500 mm
Loading Station with Fanning Magnets
Suction Frame: 4000 × 1500 mm
Suction Cups with Peeler Cup
Vacuum Sensor for Each Circuit
Central Lubrication
Sheet Thickness Sensor
Automatic Clamp Closing
GripMaster
Automatic Scrap Skeleton Removal
Automatic Scrap Skeleton Stacking
Process Monitoring Sensors
Tiltable Skeleton Pallet: 4000 × 1500 mm
Double Cart Loading and Unloading System
Storage Interface
Part Sorting
Parallel Finished Part Unloading
