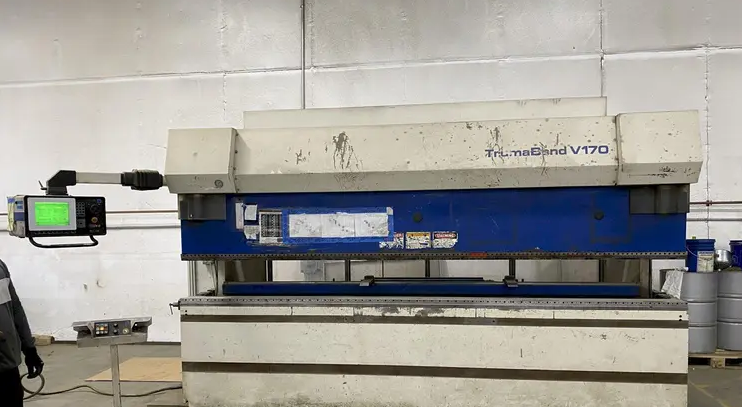

Trumpf V170 187 T
Ref :
2764408-3-CP
Condition :
Used
Manufacturer :
Trumpf
Model :
V170
Pressure :
187 T
Year(s) :
1998
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Tonnage 187 T
Overall length 13'
Between housings 12'
Stroke length 14"
Number of axes 8
Capacity 187 tons x 160"
Maximum bending length 13' 4"
Distance between housings 145"
Stroke (adjustable) 14.37"
Distance floor to bed 41"
Open height 21.6"
Closed height 7.2"
Throat depth 16"
Advance speed 472 IPM
Pressing speed 2–24 IPM
Return speed 320 IPM
Approximate dimensions 180" x 84" x 119"
Approximate weight 37,000 lbs
Swing-down ID spindle
Programmable auto infeed
Coolant pump
Hydraulic system
