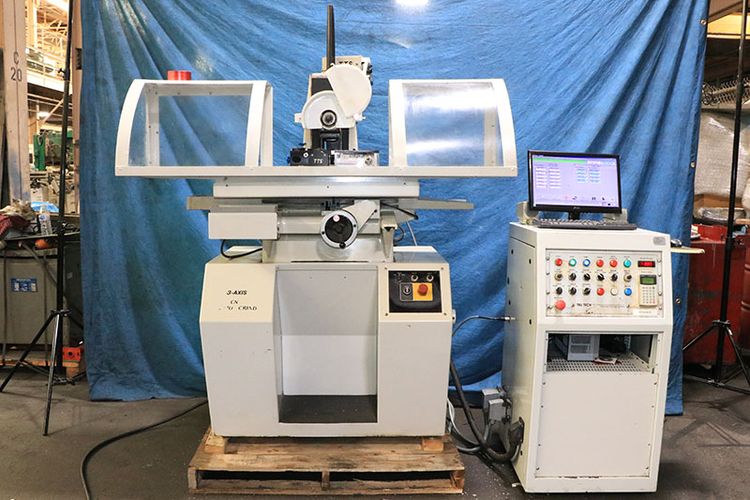

Trutech TRU-TECH TT-9500 CNC

TRU-TECH TT-9500 CNC
2002 (Upgraded with new PC in 2022)

Maximum grind length 7.5"
Maximum grind diameter 3"
X-axis travel 18"
Y-axis travel 10.75"
Z-axis travel 9"
Standard wheel size 8" max
Spindle drive 1.5 HP
Maximum Y-axis velocity 15 IPM
Maximum Z-axis velocity 15 IPM
Input increment 0.000010"
Floor space required 8'6" L-R x 5'6" F-B
Shipping weight 2500 lbs
Windows-based TruTech CNC controls
CNC programming software
Quick setup
Plunge grind capable
Peel grind capable
In-feed grind capable
Thru-feed grind capable
Profile grinding with standard 1A1 wheel
Intuitive programming interface
Ideal for carbide blank preparation
New PC installed in 2022
9" cross travel
New 2023 TT-5000 centerless grinding unit
New sine plate base
Infinitely variable speed grinding spindle
Coolant system
Full machine enclosure
CNC control console with push buttons
Hole through column for thru-feed grinding
Machine wired for 3/60/230 volts
Superior condition
Ready for demo under power
