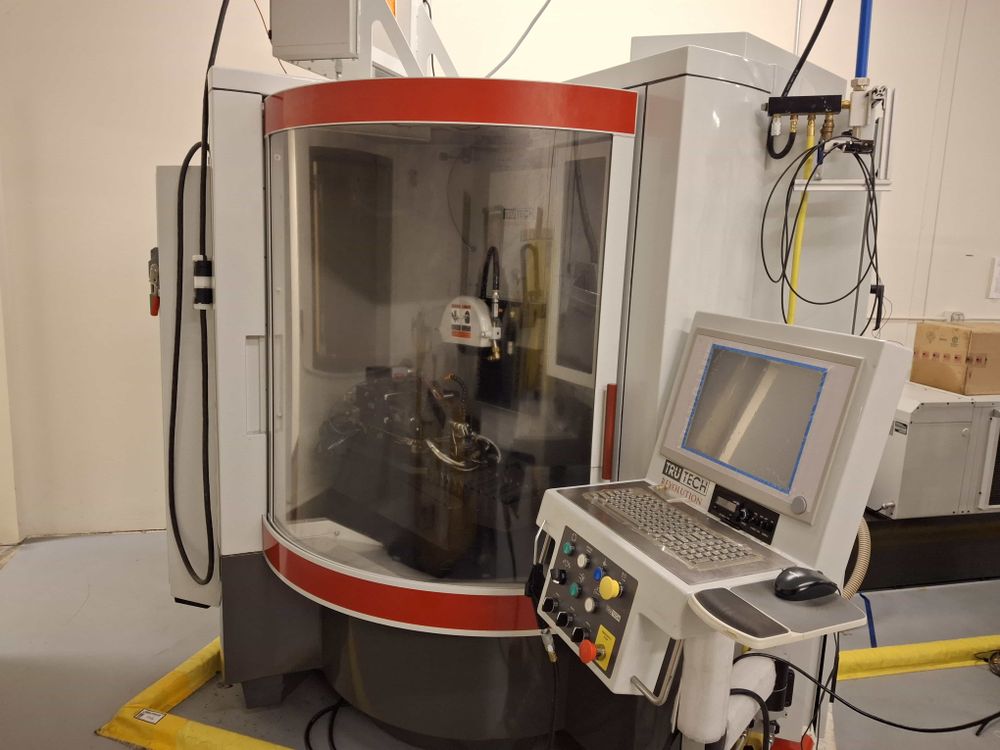

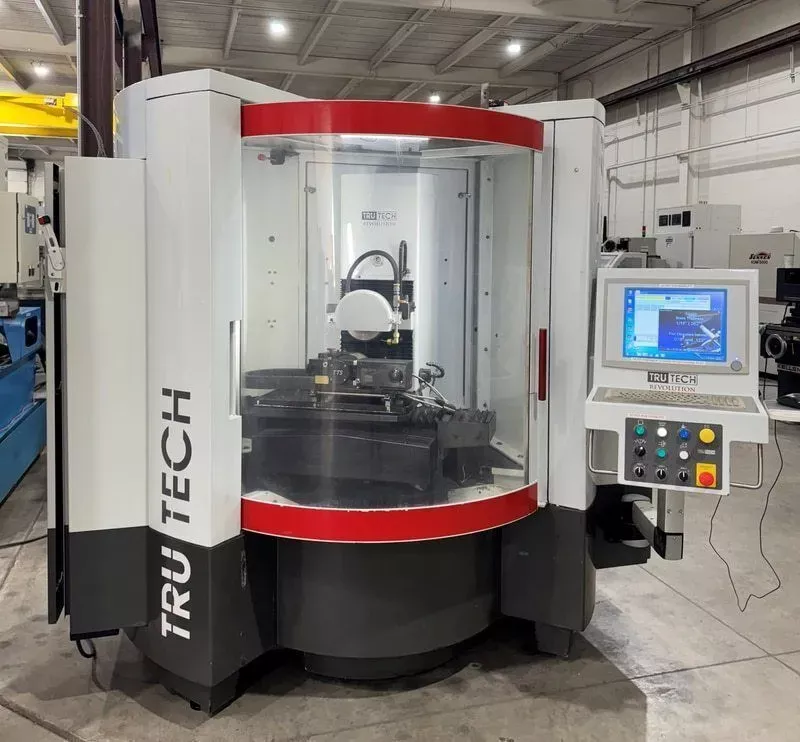

Trutech TRU TECH REVOLUTION T93X

X-Axis Travel: 16"
Y-Axis Travel: 9"
Z-Axis Travel: 8.6"
Grind Length Maximum: 8"
Grind Diameter Maximum: 3"
Grind Diameter Minimum: Tooling Dependent
Wheel Diameter Maximum: 8"
Spindle Power: 3 HP
Spindle RPM Maximum: 5,000 RPM
Velocity Maximum: 50 IPM
Input Increment: +/-0.000010"
Accuracy Minimum: +/-0.00005"
Repeatability Minimum: +/-0.000025"
Machine Dimensions: 105" x 73" x 96"
Machine Weight: 5,800 lbs
Perimetric Profile Grinder
Profiles with 1A1 Wheel
Profile Grind
Plunge Grind
Peel Grind
In-feed Grind
Thru-feed Grind

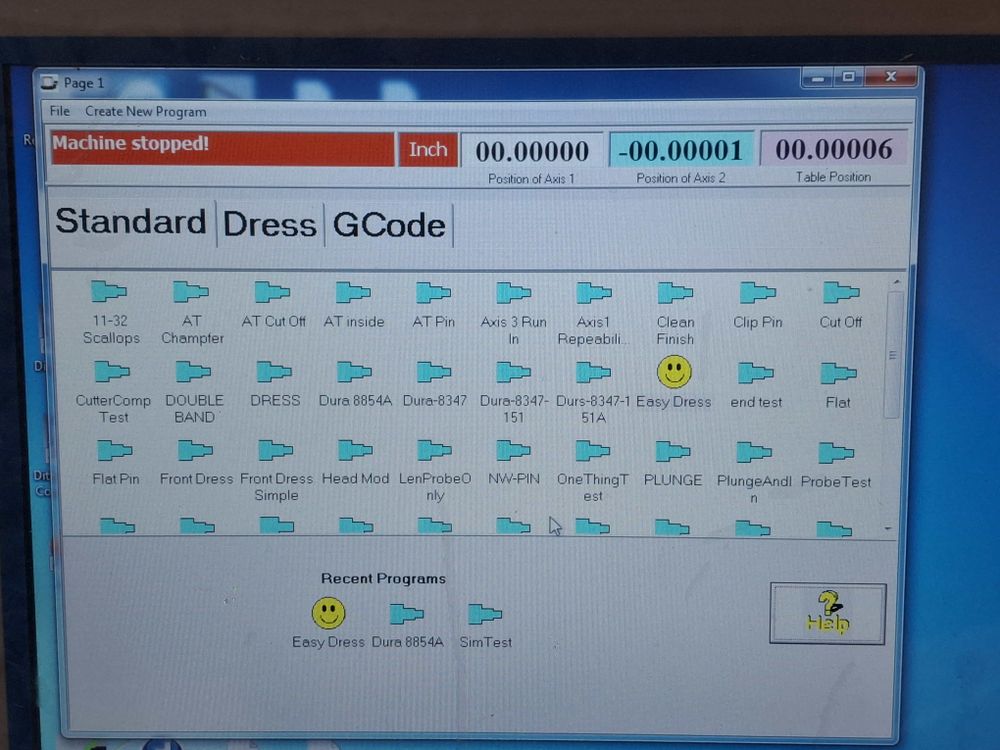

Tru Tech Pick-N-Place Programming Software
Three-Axis Fully Programmable
Touch Screen Pendant

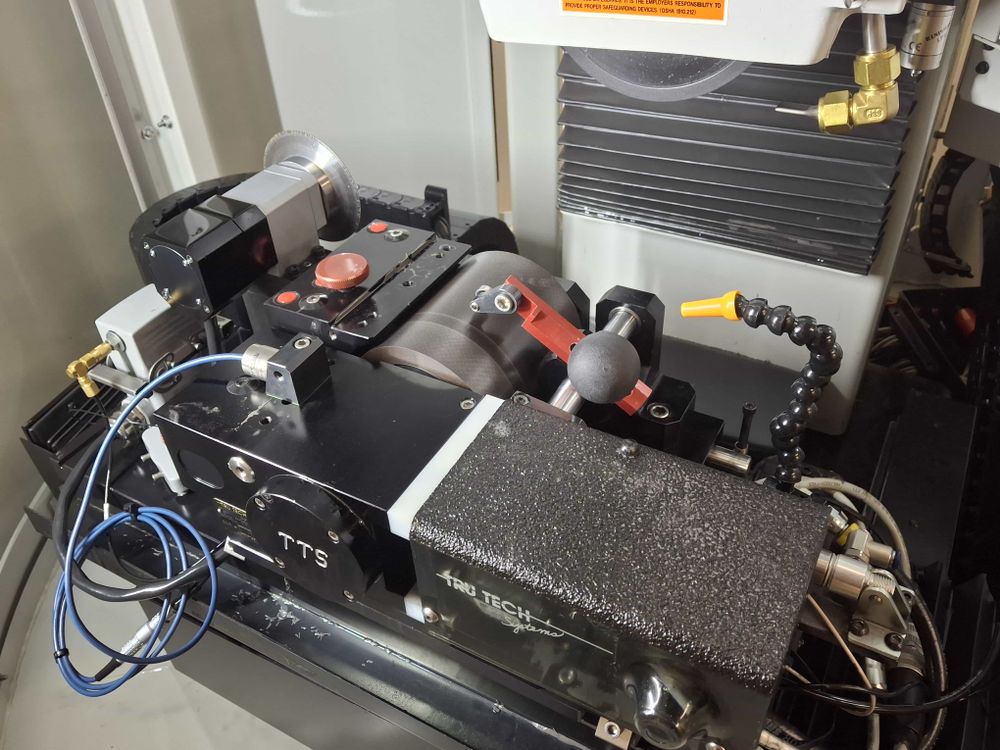

3-Point Perimetric Work-holding
5" Tru Tech TT-5000 Precision Grinding Unit (Rebuilt 2025)
In-Process Dressing
High Density Granite Base

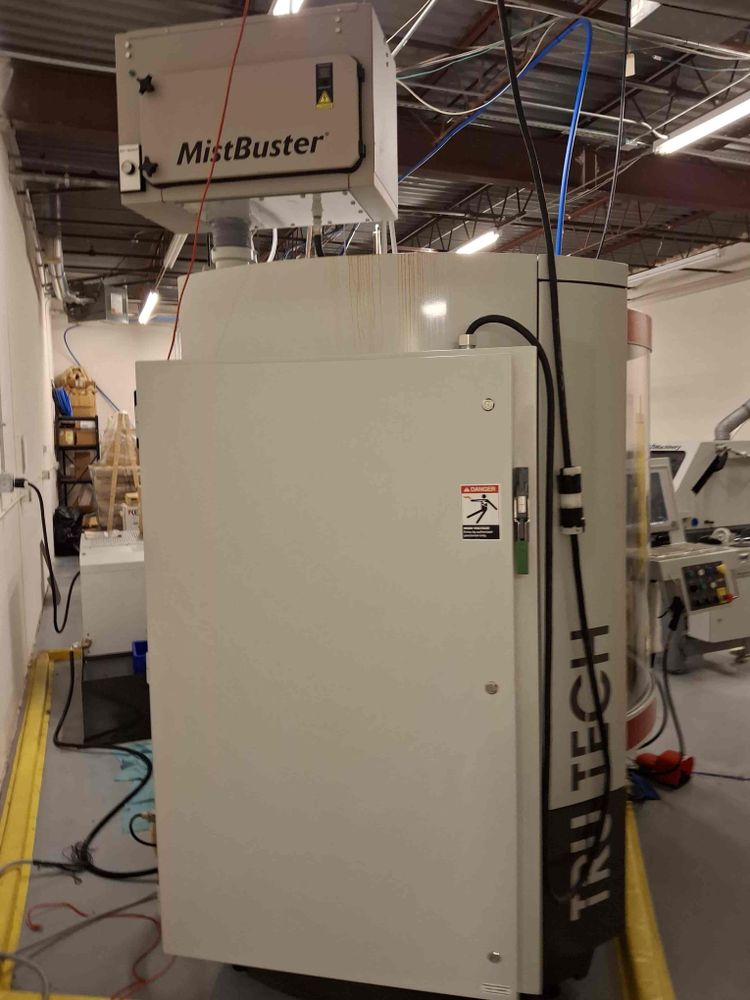

Top Mounted Mist Collector
